Industrial Touch All In One PC With Fan, Celeron J1900/Core I5 6360U

0 reviews • Write a review

from

$901.27

Ex Tax: $901.27

Stock: In Stock
Model: RDDLZ-IPC-A150
Weight: 1.00
SKU: RDDLZ-IPC-A150

Available Options

Usable System

CPU

RAM/ Hard Disk Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial PC Features

Intel Celeron J1900 quad core 2.0GHz/Intel core i5 6360U dual core 2.6GHz CPU
2*COM, 1*VGA, 1*HD, 1*RJ45LAN, 2*USB3.0, 2*USB2.0
64MB SMT Flash ROM, support wake on lan
High quality cold rolling plate for heat dissipation, fan active cooling
Support Win7/ win10/ Linux (Centos or Ubuntu) system
Support embedded, wall-mounted, three-dimensional and desktop installation
High anti-interference ability, heat risistant, anti-cold, suitable for any harsh environment

Specification

Model	RDDLZ-ITPCA150 (with fan)
Material	High-quality pure aluminum
CPU	Intel Celeron J1900 quad core 2.0 GHz, (Core i5 6360U is optional)
Chipset	Adopt Intel express chipset
RAM	1*SODIMM DDR3L, max 8G
Storage	1MSATA, 12.5 inch SSD/HDD
Audio	Integrated Realtek ALC662 6 sound channel
Display Interface	1HD, 1VGA, 1*LVDS
Display	Integrated Intel HD Graphic card, support VGA, HD, display input
I/O	2USB3.0, 2USB2.0
	1*HD
	2*COM
	1*RJ45 Lan
	1*MIC
	1*Audio
	1*12V DC IN
Network Card	1*Realtek8111E 1000M lan, support wake on lan
Touch screen	Resistance-type touch screen (single point); Life time: over 30 Millions
Watch Dog Timer	Support hardware reset (256 level,0~255 sec)
Power Supply	DC 12V-IN power supply and AC power adapter
Operating System	Win7/ win10/ Linux (Centos or Ubuntu) system
BIOS	64MB SMT Flash ROM
Working Temperature	-10°C - 50°C
Working Humidity	0% - 90% relative humidity, Non-condensing
weight	3 Kg
Size	35126245 mm

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

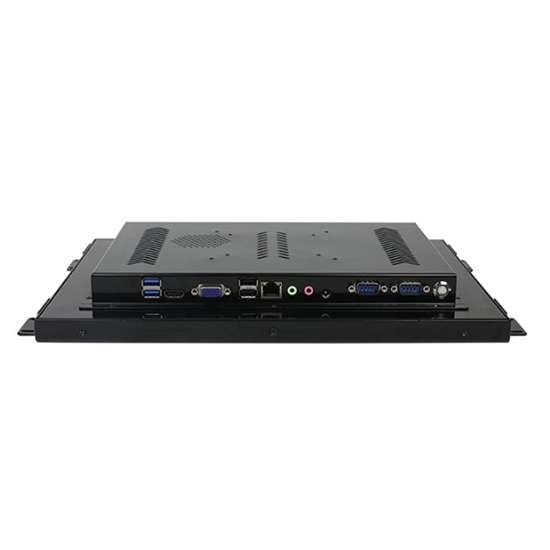

Industrial PC Rich Interfaces
Tips: The SSD of industrial PC
The solid internal hard disk (SSD) has a simple internal structure and adopts a PCB board to carry a main control chip and a flash memory chip, which constitutes an important internal main body. In addition, the internal capacity is extended by the combination of solid state electronic disk array, and the working efficiency and anti-seismic ability of the hard disk are greatly improved by reducing the complexity of the parts compared with the mechanical hard disk. In terms of reading and writing performance, the theoretical bandwidth and reading and writing speed will be 5~10 times faster than that of the mechanical hard disk, using the solid state hard disk carrying NAND flash memory particles and the high speed serial interface. Industrial computer with industrial solid state hard disk will be more advantageous than mechanical hard disk in bad working environment, such as reading and writing speed, earthquake resistance, easy fall, long time operation and so on.
