Inductive Proximity Sensor, Metal Detection, PNP, M5

0 reviews • Write a review

from

$39.95

Ex Tax: $39.95

Stock: In Stock
Model: RDDLZ-PROS-I5
Weight: 1.00
SKU: RDDLZ-PROS-I5

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

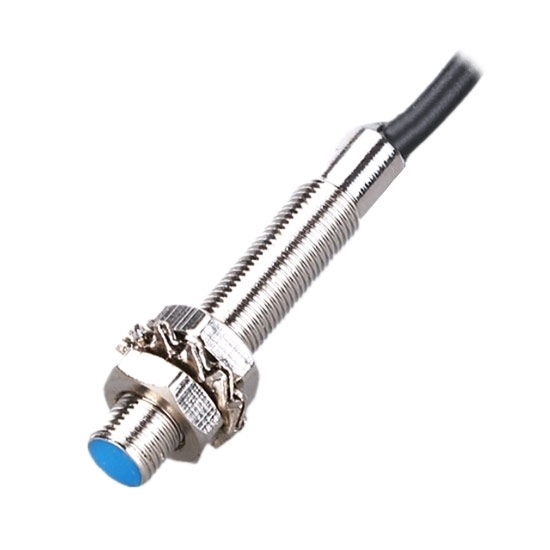

Inductive proximity sensor with M5*1 thread, PNP type output, manufacturer direct sale. The insulation impedance between the charging part and housing is ‌≥50MΩ (DC500 megameter)‌ to ensure electrical safety.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			RDDLZ-PSI-5A1ZP
Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
			NC
Detection range			1mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 551mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: How to install proximity sensor?

When a proximity sensor is installed on metal, certain space should be reserved to prevent the proximity sensor malfunction that is disturbed by other metals rather than the detected object. The metal paralleled to sensing surface should be three times of detection distance away from the sensing surface. The metal around proximity sensor axis should be away from a cylinder, whose axis is the same as proximity sensor axis and diameter is three times of the proximity sensor diameter. When installing the proximity sensor, you can use some tools to ensure accuracy.
When installing two or more proximity sensors at the same time, should prevent interference between proximity sensors. If the sensors are placed face to face, the distance between two sensing surfaces in the axial direction should be five times longer than the detect distance. If the sensors are placed side by side, the distance between outer cylindrical surfaces should be three times longer than the diameter of proximity sensor. In addition, if the diameter of sensor differs in size, it should be calculated in accordance with the larger diameter of proximity sensor.
