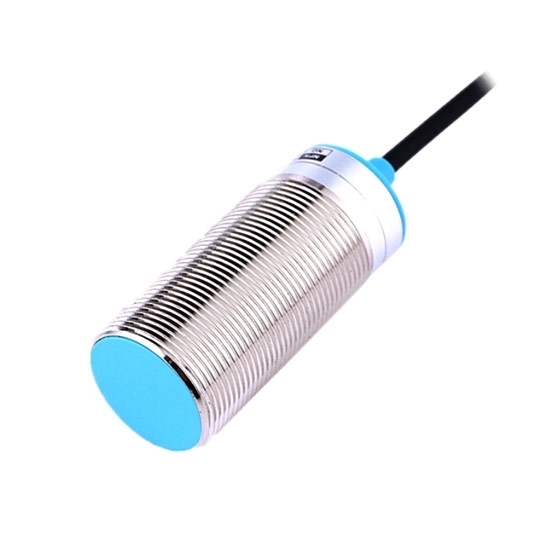

Inductive Proximity Sensor, Metal Detection, PNP, M30

0 reviews • Write a review

from

$39.95

Ex Tax: $39.95

Stock: In Stock
Model: RDDLZ-PROS-I30
Weight: 1.00
SKU: RDDLZ-PROS-I30

Available Options

Short Description

Specification Selection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Inductive proximity sensor with M30*1.5 thread, PNP type output, manufacturer direct sale. This M30 proximity sensor is an IP67 rated inductive proximity sensor for detecting magnetic metal objects.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			RDDLZ-PSI-30A10ZP
Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
		3 wire	NO+NC	NO+NC
Detection range			10mm±10%	15mm±10%
Setting distance			0-8mm	0-13mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 30301mm	Iron 54541mm
Response frequency			DC: 0.5kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Wiring diagram

Tips: Proximity sensor's common problems on detect distance

Proximity sensor can't detect the distance of detected object.
Sensor is installed within the detection range with unstable signal in the actual detection (sometimes detectable and sometimes undetectable).
Actual detection distance is different from the standard detection distance indicated in sensor (or less than the detection distance, or larger than the detection distance).

Since there is a certain tolerance detection distance in proximity sensor that is 10% of the standard detection distance, that is to say, the detected object installed at the maximum distance could be influenced by its material so that the perception of sensor is at the critical point, causing the object sometime detectable and sometimes not. In addition, some industrial equipment or detected object has certain distance deviation in the process of operation or swinging. If a detected object is installed at the maximum detection distance, there could be a malfunction or bad reception.
