Mini Needle Cylinder, Single Acting

0 reviews • Write a review

from

$13.28

Ex Tax: $13.28

Stock: In Stock
Model: RDDLZ-PC-CJPB
Weight: 1.00
SKU: RDDLZ-PC-CJPB

Available Options

Stroke

Bore

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

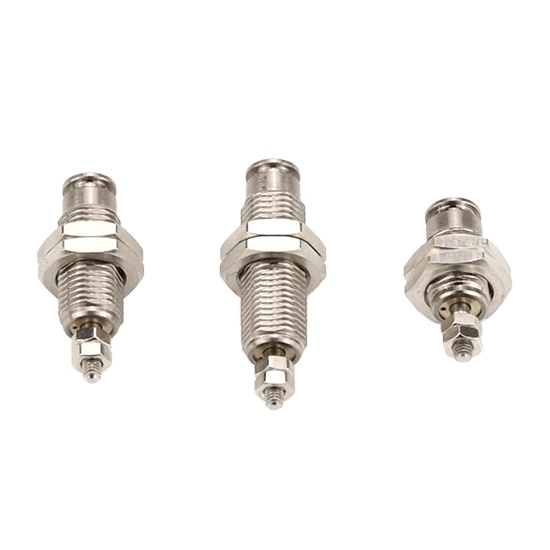

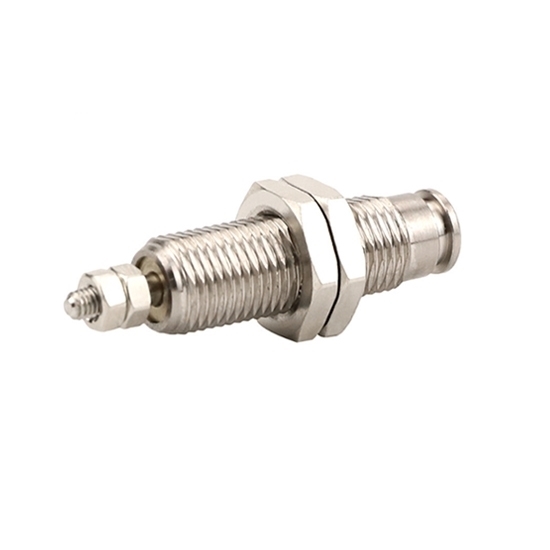

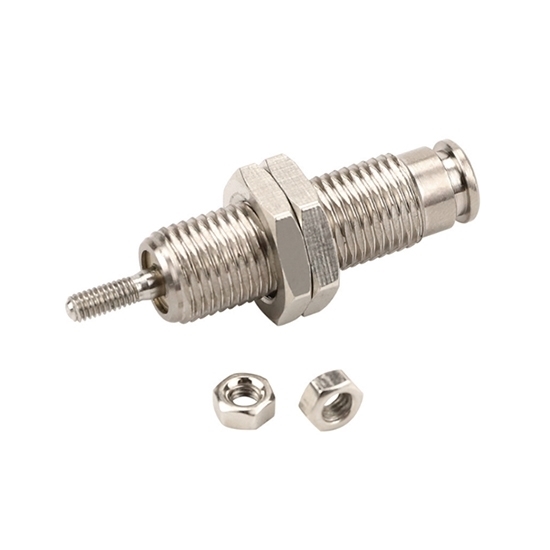

The mini pin cylinder uses air pressure to push the piston rod and is generally used for positioning devices. The needle cylinder has a solid brass body for durability. Single acting bolt cylinders are available with strokes of 5 mm, 10 mm and 15 mm and bore sizes of 6 mm, 10 mm and 15 mm.

Specification

Model	RDDLZ-CJPB
Bore	6mm	10mm	15mm
Working Medium	Air
Actuation Mode	Single acting - spring return
Maximum Operating Pressure	0.7 Mpa
Minimum Operating Pressure	0.2 Mpa	0.15 Mpa
Ambient and Fluid Temperature	-10~70°C (but not freezing)
Buffer	None
Use Piston Speed	50~500mm/s
Stroke Tolerance	+1.0mm
Grease	Is not required
Port Size	M5*0.8 (panel type)

Dimension (Unit mm)

Bore	A	B	C	E	F			G	H	K	MM	NN	R	S			W	Z			O
Bore	A	B	C	E	5st	10st	15st	G	H	K	MM	NN	R	5st	10st	15st	W	5st	10st	15st	O
6	7	12	13.9	6	12.5	19.5	26.5	6.5	9	3.5	M3x0.5	M10x1.0	9	18.5	25.5	32.5	3	27.5	34.5	41.5	3
10	10	19	22	6	14.5	21	28	12	12	3.5	M4x0.7	M15x1.5	13	20.5	27	34	4	32.5	39	46	5
15	12	27	31	7	16.5	22.5	29	19	14	4.2	M5x0.8	M22x1.5	20	23.5	29.5	36	5	37.5	43.5	50	6

Tips: What are the 2 types of rotary cylinders?

Vane type rotary cylinder: through the internal stop block or external block to change its swing angle. Stop block and cylinder body are fixed together, and the blade and the shaft are connected together. The pneumatic pressure acts on the blade to drive the rotating shaft and output torque.

Geared rotary cylinder: pneumatic pressure pushes the piston to drive the rack to do linear movement, the rack drives the gear to do rotary movement, and there is a gear shaft output torque that drive the external load swing.
