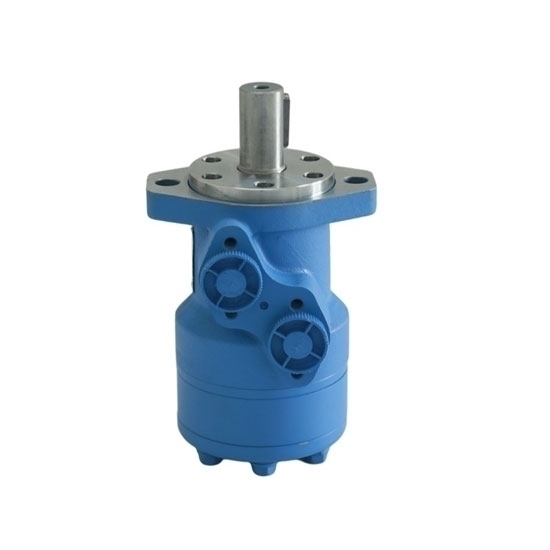

Hydraulic Orbital Motor, 305cc/rev

0 reviews • Write a review

from

$326.89

Ex Tax: $326.89

Stock: In Stock
Model: RDDLZ-HOM-305
Weight: 1.00
SKU: RDDLZ-HOM-305

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hydraulic orbital motor is widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machines, cleaners, grass cutters, winches, conveyors, slews, sweeper drives, augers, cutters, mowers and chippers.

Specification

Model		RDDLZ-OMP-305
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		305 cc/rev (305 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	203 rpm
	Intermittent	242 rpm
Pressure	Continuous	100 ∆Bar
	Intermittent	124 ∆Bar
Torque	Continuous	412 Nm
	Intermittent	483 Nm
Weight		8.5kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=187mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=194mm

Details

Tips: Structure of the hydraulic orbital motor

Internal meshing gear pair composed of rotor and stator. The cycloid pin wheel meshing pair is the torque-generating part. The stator is fixed on the shell together with the partition plate and the back cover to form seven tooth cavities which only communicate with the oil distribution holes of the shell one by one.
Oil distribution mechanism is composed of an oil distribution sleeve and shell. The two ring grooves of the oil distribution sleeve are respectively communicated with the oil inlet and return ports of the shell. Its twelve longitudinal grooves are connected with six oil inlets, and the six oil return channels form the oil distribution link with the oil distribution holes of the shell.
The splines at both ends of the linkage shaft are respectively connected with the rotor and the output shaft. Its function is to transmit the torque and ensure the synchronization of the oil distribution sleeve and the output shaft with the rotor.
The function of the output shaft is to output the torque generated by the rotor through the linkage shaft and drive the oil distribution sleeve to rotate synchronously.
