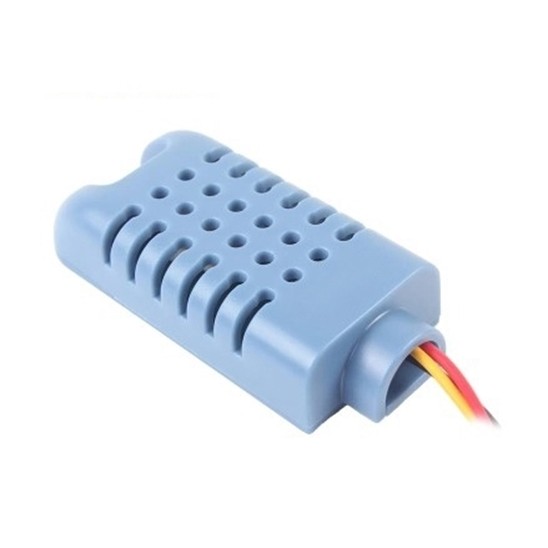

Humidity Sensor, Capacitive, Analog Output 0-3V

0 reviews • Write a review

from

$37.42

Ex Tax: $37.42

Stock: In Stock
Model: RDDLZ-TAHS-AM2001
Weight: 1.00
SKU: RDDLZ-TAHS-AM2001

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Humidity sensor with 0-3V output signal is easy to connect with dual channel temperature controller for temperature and humidity monitoring.

Application: Humidity sensor is widely used in HVAC, dehumidifiers, automobile, data loggers, humidity regulators, and humidity detection and control system.
Specification:

Item	AM1011A
Weight	14g
Dimension (LWH)	26.713.858.8mm
Output signal	0-3V
Power supply	DC 4.75-5.25V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+80℃
Accuracy of humidity	±3%RH
Accuracy of temperature	±0.5℃
Power consumption	≤2mA
Housing material	ABS
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~80℃, humidity: ＜95%RH
Cable length	25cm (customized cable length ≤20m)
Wiring	1 red: VDD (power supply), 2 yellow: Hout (humidity output 0-3V), 3 black: GND (ground), 4 Gray: Tout (Temperature is NTC 10K)

Dimensional drawing (unit: mm):

Pin assignment:
