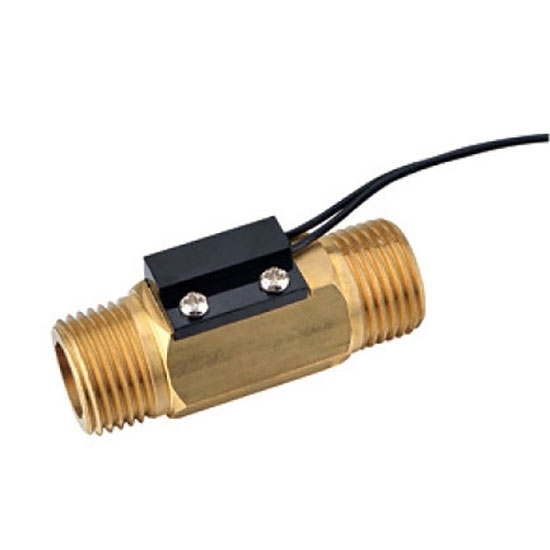

G1/2" Magnetic Water Flow Switch

0 reviews • Write a review

from

$57.79

Ex Tax: $57.79

Stock: In Stock
Model: RDDLZ-MR-2260
Weight: 1.00
SKU: RDDLZ-MR-2260

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This flow switch is not made of food grade material and is not recommended for use in drinking water.

Magnetic water flow switch is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.

Specification

Model	RDDLZ-SK
Thread	G1/2"
Max Contact Power	10W
Max Operating Flow Rate (Optional)	15L/min
Contact Type	NO
Max Switch Voltage	250VDC
Min Break Down Voltage	300VDC
Max Switch Current	0.3A
Max Carry Current	1.5A
Max Contact Resistance	100mΩ
Min Insulation Resistance	10¹⁰Ω
Contact Life	10⁷Times
Operating Temperature	-1 ~ +85℃
Applicable Environment Temperature	-40 ~ +125℃
Min Flow Rate	≥1.5L/min
Max Carry Pressure	1.5MPa

Dimensions

Tips: What is the function of water flow switch?

The water flow switch is a common flow detection device. It mainly detects the dynamic state of the water flow, which has the advantages of flexible use, stable performance, high reliability and long life span and so on.

In some large equipment and machines, circulating water is usually used to cool the equipment to ensure that the operating temperature of it is within a reasonable range. When the cooling water system fails, if the water flow stops, the temperature of the equipment will rise, leading to it to operate abnormally even burned out. Usually, a flow switch is installed in the pipe of the cooling water system to monitor the flow state of the cooling water in real time. Once the cooling water stops flowing, the water flow switch will send an alarm signal to the central control room, so that it can deal with this situation in time and avoid an accident.
