Fixed Methane (CH4) Gas Detector, 0 To 100% LEL

0 reviews • Write a review

from

$2,093.23

Ex Tax: $2,093.23

Stock: In Stock
Model: GD300-CH4
Weight: 1.00
SKU: GD300-CH4

Available Options

Measuring Range

Signal Output

Relay Output

Power Adapter

Calibration Kit

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price methane gas detector for sale. Measurement range 0-100% LEL, supports remote control with output signal 4-20mA and RS485. The CH₄ gas detector has fixed design, which is used in methane concentration detecting and monitoring, sound and light alarm, real-time display, small size, lightweight, convenient mounting.

Features

Methane gas detector adopts high precision sensor for accurate gas leak detection.
Methane gas detector is equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
The CH₄ gas detector is compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
Explosion-proof design, fast, relaible and stable.
Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
Two-stage alarm with sound and light, and the alarm point is settable.
The methane gas detector has self-calibration function, and three standard keys will be used to realize on-site maintenance.
The CH₄ gas detector can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

Model	GD300-CH4
Detection Principle	Infrared
Gas	Methane (CH4)
Range	0-100% LEL, 0-50% VOL, 0-100% VOL
Resolution	1% LEL (0-100%LEL), 0.01% VOL (0-50%VOL), 0.1% VOL (0-100%VOL)

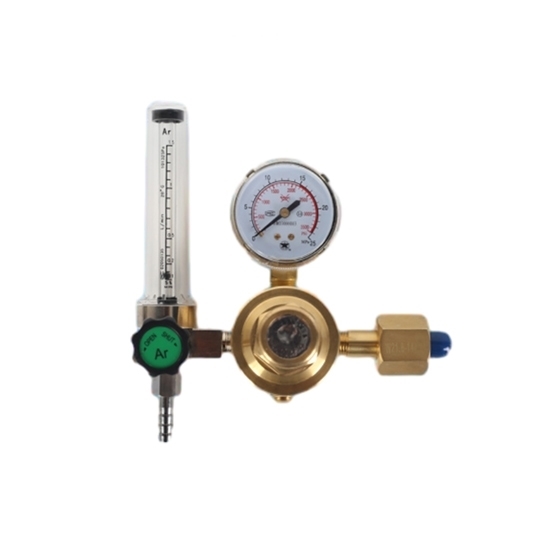

Calibration Kit	Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP65
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12~36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 2A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Methane (CH₄) Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/10/50/100/200/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/9999ppm, 0-2/5/10/20/25/30/50/100%VOL	0.1ppm/1ppm/0.001%VOL/0.01%VOL/0.1%VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Combustible Gas (EX)	0-100%LEL	1%LEL
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100%LEL	1%LEL
Hydrogen (H2)	0-10/20/500/1000/2000/5000/9999ppm, 0-2/4% VOL, 0-100% LEL	0.1ppm/1ppm/0.001%VOL/1%LEL
Hydrogen Chloride (HCL)	0-10/20/50/100/200ppm	0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)	0-5/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Methane (CH4)	0-50/100%VOL, 0-100%LEL	0.01%VOL/0.1%VOL/1%LEL
Nitric Oxide (NO)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99/0-100%VOL	0.01%VOL/0.1%VOL
Nitrogen Dioxide (NO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25/30/100%VOL	0.01%VOL/0.1%VOL
Ozone (O3)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Tips: How to improve the service life of methane gas detector?

The methane gas detector should be calibrated and tested regularly.
When replacing the probe of CH₄ gas detector, in addition to a certain sensor activation time, the instrument must be recalibrated. In addition, before using the methane gas detector, use the standard gas for response detection to ensure protection of the instrument.
Pay attention to the interference between other sensors and the methane gas detector.
Although a composite gas detector can detect multiple gases at the same time, the fixed gas detector is not suitable for any combination of toxic and harmful gases. Generally speaking, each gas detector corresponds to a specific detection gas, but any gas detector cannot be absolutely effective.
Pay attention to the life of methane gas detector.
CH₄ gas detector has a certain service life. Generally, in portable gas detectors, LEL sensors have a longer life span and can generally be used for about three years. The life of the photoionization detector is four years or longer. The lifetime of electrochemical specific gas detectors is relatively short, generally one to two years. The life span of the oxygen sensor is short, about a year or so.
