Fixed Hydrogen Cyanide (HCN) Gas Detector, 0 To 10/20/50/100 Ppm

0 reviews • Write a review

from

$1,126.99

Ex Tax: $1,126.99

Stock: In Stock
Model: GD300-HCN
Weight: 1.00
SKU: GD300-HCN

Available Options

Measuring Range

Signal Output

Relay Output

Power Adapter

Calibration Kit

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

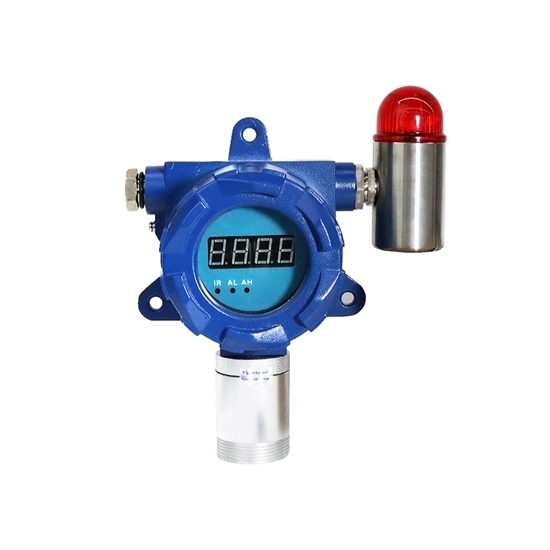

RDDLZ fixed HCN hydrogen cyanide gas detector uses high quality sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Explosion proof, suitable for different kinds of situations.

Specification

Model	GD300-HCN
Detection Principle	Electrochemistry
Gas	Hydrogen Cyanide (HCN)
Range (Optional)	0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm
Resolution	0.01ppm(0-10/20/50ppm), 0.1ppm(0-100ppm)

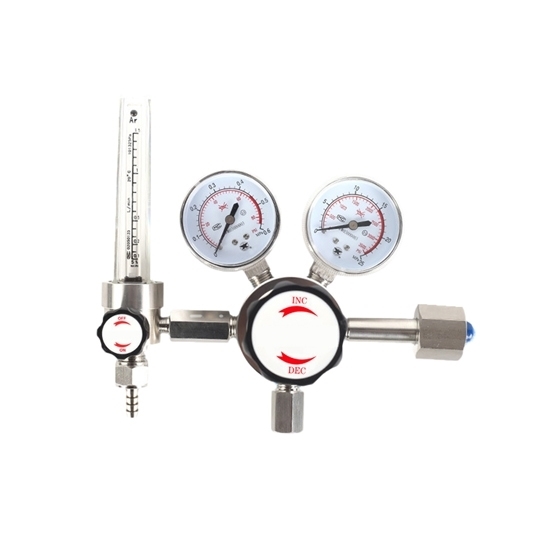

Calibration Kit	Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP65
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg

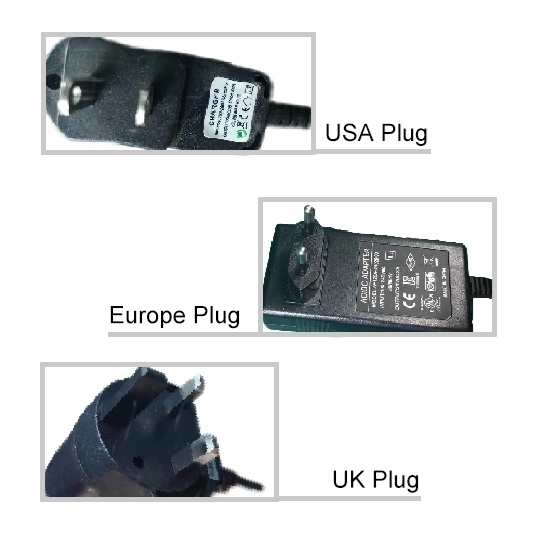

Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/10/50/100/200/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/9999ppm, 0-2/5/10/20/25/30/50/100%VOL	0.1ppm/1ppm/0.001%VOL/0.01%VOL/0.1%VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Combustible Gas (EX)	0-100%LEL	1%LEL
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100%LEL	1%LEL
Hydrogen (H2)	0-10/20/500/1000/2000/5000/9999ppm, 0-2/4% VOL, 0-100% LEL	0.1ppm/1ppm/0.001%VOL/1%LEL
Hydrogen Chloride (HCL)	0-10/20/50/100/200ppm	0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)	0-5/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Methane (CH4)	0-50/100%VOL, 0-100%LEL	0.01%VOL/0.1%VOL/1%LEL
Nitric Oxide (NO)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99/0-100%VOL	0.01%VOL/0.1%VOL
Nitrogen Dioxide (NO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25/30/100%VOL	0.01%VOL/0.1%VOL
Ozone (O3)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Application

Tips: What industries can gas detectors be used for?

Oil and gas: It can be used in oil and gas application sites and various industrial activity sites. When oil and gas are extracted, transported, stored and smelted, there will be flammable hydrocarbon gases with explosion risks and toxic gases such as hydrogen sulfide. Therefore, gas detector is an important instrument for exploration of drilling channels, as well as oil and gas terminals and smelters.
Semiconductor production: In semiconductor production, phosphorus, arsenic, boron and gallium are often used as additives, and hydrogen is used as a carrier gas for reactants and reducing air. At the same time, the use of many highly toxic substances and flammable gases produces many Combustible and toxic gases make gas detectors an indispensable instrument.
Wastewater treatment: Due to poor governance, sewage wastewater is very common in many cities and towns, and harmful gases such as methane and hydrogen sulfide are naturally emitted from sewage and wastewater, and the smell is pungent, so gas purifiers can come in handy here. .
Hospital: There will be many toxic substances in medical laboratories and medical waste gas, and in large-scale hospitals, on-site equipment power supplies and backup power stations will be used, so gas detection equipment is required to ensure the safety and health of patients and doctors.
