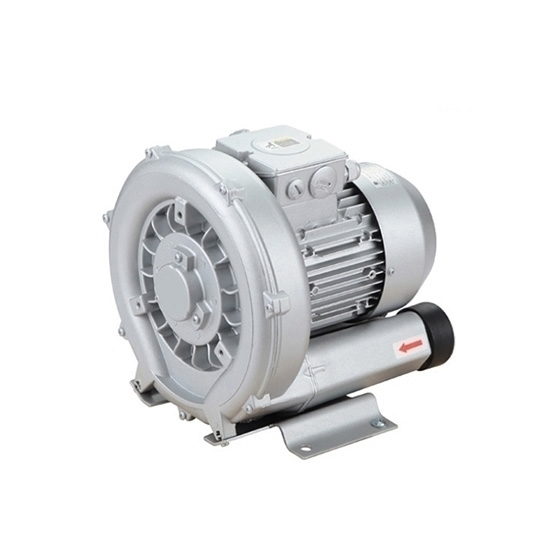

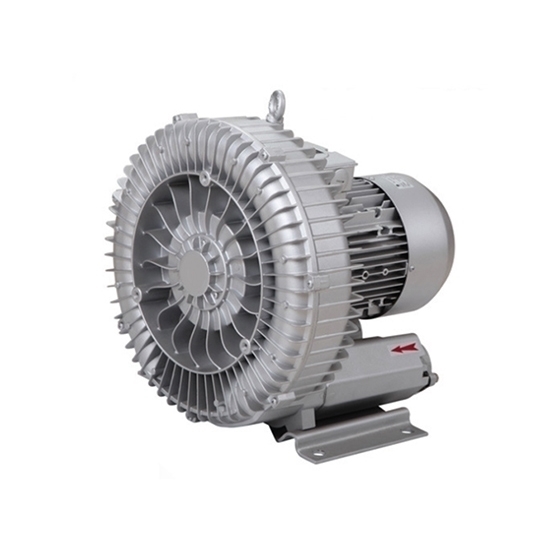

3 Phase 3 Hp (2.2kW) Regenerative Blower, 380V, 124 Cfm

0 reviews • Write a review

from

$952.42

Ex Tax: $952.42

Stock: In Stock
Model: RDDLZ-RB-380-2200
Weight: 1.00
SKU: RDDLZ-RB-380-2200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High pressure 2200W regenerative blowers for sale, which flows 210m³ air per hour and makes only 64 dB noise. It is suitable for mechanical drying, moisture and oil removal in industrial production.

Specification

Model	RDDLZ-2PB510H36
Phase	3
Frequency	50
Power	3 hp (2.2 kW)
Voltage (AC)	△220-240V / Y345-415V
Current	9.7△ A / 5.6Y A
Max airflow	210 m³/ h (124 cfm)
Rated vacuum pressure	-220 mbar
Rated compress pressure	270 mbar
Noise	64 dB (A)
Weight	29 kg

Dimention (Unit: mm)

ΦP

ΦR

V(1~)

V'(1~)

V1 (3~)

V1' (3~)

YXZ

X-HOLES

ΦX

334

337

120

260

295

346

191

175

128

115

155

M8X17

M25X1.5

M16X1.5

M8X20

0°/ 120°/ 240°

200

Details

Tips: High pressure blower troubleshooting

The motor fuse circuit is in poor contact or mechanically damaged, causing a certain phase of the fuse to blow.
The three-phase fuse standard of the motor power supply circuit is different, and the fuse with a small capacity is blown. It should be replaced with the same standard fuse according to the power of the motor.
The switch (isolating switch, rubber cover switch, etc.) in the motor power supply circuit and the contact of the contactor are in poor contact (burned or loose). Repair and adjust the moving and static contacts to make good contact.
One phase of the line is missing phase. Detect the disconnection and connect it firmly.
