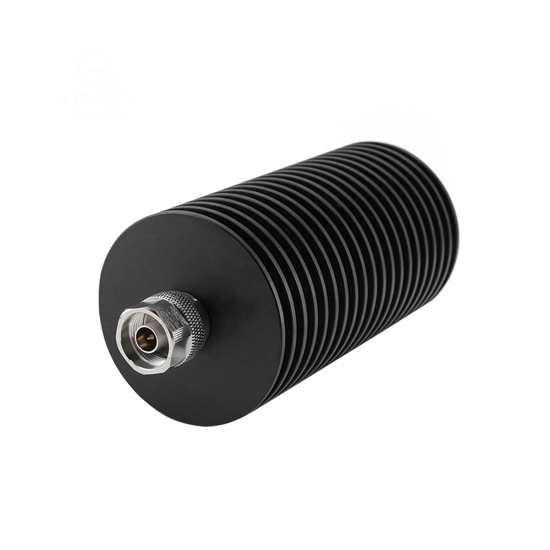

50dB 100W RF Coaxial Attenuator, 50 Ohm

0 reviews • Write a review

from

$325.39

Ex Tax: $325.39

Stock: In Stock
Model: RDDLZ-RFFA-50DB100W
Weight: 1.00
SKU: RDDLZ-RFFA-50DB100W

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Fixed RF coaxial attenuator employing SMA connector, efficiently controls signal power levels, ensuring optimal performance in electronic communication systems. It is indispensable for maintaining signal integrity in high-power RF environments, dissipating excess power as heat while facilitating consistent and reliable frequency-specific attenuation for enhanced system functionality.

Specification

Model: RDDLZ-NJKP-06-100W-50dB
Frequency Range (Optional): DC~6GHz
Standing Wave Ratio (VSWR): 1.25:1 (Max)
Attenuation Value: 50dB
Impedance: 50 Ohm
Average Input Power: 100W@25℃
Pick Power: 5kW (5μsce Pulse Width, 0.5% Duty Cycle)

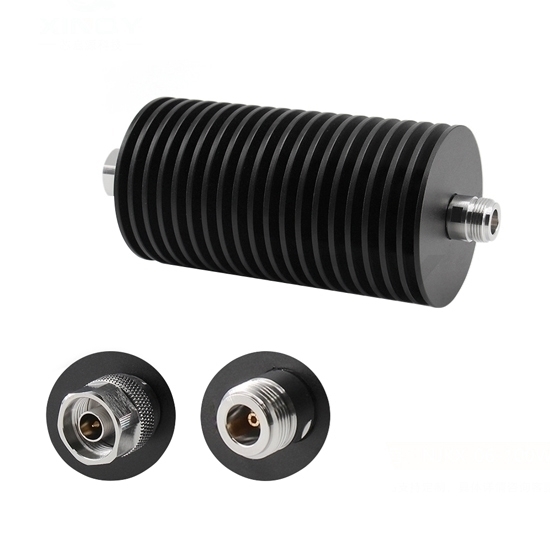

A connector Type: N-Male
B connector type: N-Female
Directionality: N Male Input, N Female Output
Temperature Coefficient: ＜0.0004dB/℃
Working Temperature: -55℃~+100℃
Inner Conductor Material: Beryllium Bronze with Gold Plating
Outer Conductor Material: Brass Plated with Ternary Alloy
Heat Sink: Aluminum Alloy Black
Insulator: PTFE
Net Weight: 561g

Dimension (Unit: mm)

Tips: Are fixed RF attenuators available for automated control?

Yes, fixed RF attenuators with automated control capabilities are available. These devices allow for precise adjustment of signal strength in radio frequency (RF) applications. Automated control is typically facilitated through integrated electronic components that enable remote or programmable attenuation. This functionality proves crucial in scenarios where dynamic adjustments are required without manual intervention. Automated RF attenuators find applications in various industries, including telecommunications, broadcasting, and research, where maintaining signal integrity and optimizing performance are paramount. The ability to remotely control and automate attenuation levels enhances operational efficiency, facilitates testing and calibration processes, and contributes to overall system reliability. Companies specializing in RF components and instrumentation often offer a range of attenuators with automated control features to meet diverse industry requirements.
