Fanless Embedded Industrial PC, Intel Celeron J1900 Quad Core CPU

0 reviews • Write a review

from

$802.22

Ex Tax: $802.22

Stock: In Stock
Model: RDDLZ-IPC-206
Weight: 1.00
SKU: RDDLZ-IPC-206

Available Options

Usable System

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial PC Features

Fanless all aluminum case design, it can work stably without noise.
Equip with Intel Celeron J1900 quad core 2.0GHz and Intel express chipset.
1*VGA+1*HD+8*USB2.0+6*COM (COM2/3 support RS485)+1*LPT+2*LAN.
1*Mini-PCIE, support WiFi/3G/4G/Bluetooth.
2*RTL8111F 1000M lan card, support wake on lan.
DC 12V power supply and AC power adapter.
Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance Parking Pay Station, Channel System, Medical electronic etc..

Specification

Model	RDDLZ-IBOX206
Material of case	High-quality pure aluminum
CPU	Intel Celeron J1900 quad core 2.0 GHz
Chipeset	Intel express chipset
RAM	Support DDR3L, max 8G
Display	Integrated Intel HD Graphic card, support VGA,HD display input
Expansion	1*MINI-PCIE (support WiFi/3G/4G/Bluetooth)
Storage	12.5 inch HDD, (22.5 inch HDD is optional)
Audio	Reaktek ALC662 5.1 channel HAD Codec, support MIC/Line-Out ports
Network	2*RTL8111E 1000M Lan, support wake on LAN
Usable system	Win7/ win10/ Linux (Centos or Ubuntu) system
HDD	1*SATA, 500G (optional 500~1T)
SSD	16G/32G/64G/128G/256G optional
I/O	2*PS/2
	6*RS232 COM (COM2/3 can support RS485)
	1*DC-IN 12V
	2*RTL8111E 1000M Lan
	1*VGA
	1*HD
	1*LPT
	8*usb2.0
	1*Audio
	1*Mic
BIOS	AMI UEFI BIOS
WDT	Support hardware reset (256 level, 0~255 sec)
Power Supply	DC 12V
Operation Temp	-10°C ~ 60°C
Humidity	0% - 95% relative humidity, non-condensing
Dimension	23420064.5mm (LWH)
Weight	2.5 Kg

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

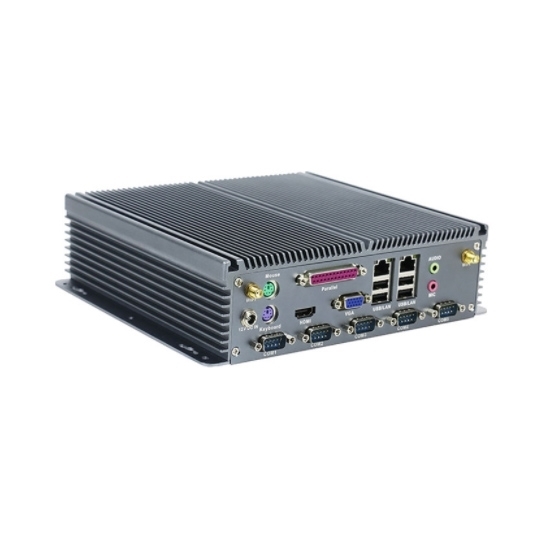

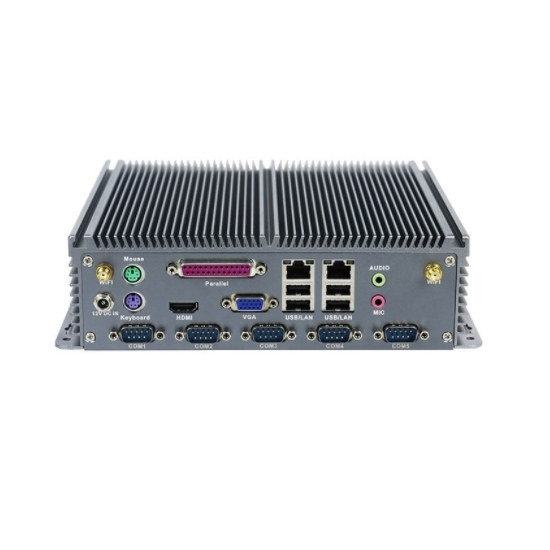

Industrial PC Rich Interfaces
Tips: RDDLZ industrial PCs technology features

Adopt the all aluminum industrial chassis that conforms to the ''EIA'' standard, and enhance the anti-electromagnetic interference ability.
There is no fan in the cabinet, and heat dissipation by the shell.
With highly reliable industrial power, and over voltage and over current protection.
Both the power supply and the keyboard are equipped with electronic lock switches to prevent illegal opening, closing and illegal keyboard input.
It has the function of self diagnosis.
There is a watchdog timer, which automatically resets without human intervention when a malfunction occurs.
It is convenient for multi task scheduling and operation.
