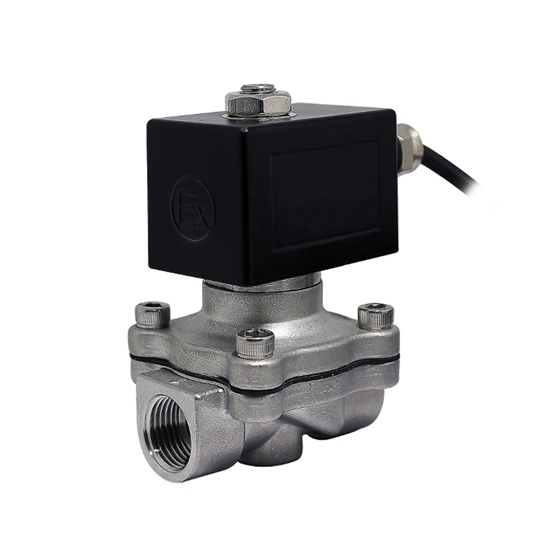

Explosion Proof Solenoid Valve, Stainless Steel, NC, DC 6V/12V/24V

0 reviews • Write a review

from

$311.53

Ex Tax: $311.53

Stock: In Stock
Model: RDDLZ-EPSV-SNCD
Weight: 1.00
SKU: RDDLZ-EPSV-SNCD

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Stainless steel solenoid valve adopts direct lifting diaphragm construction. Solenoid operated valve widely used in liquid and gas line switch control.

Specification:

Model	RDDLZ-2WEX-10	RDDLZ-2WEX-15	RDDLZ-2WEX-20	RDDLZ-2WEX-25	RDDLZ-2WEX-32	RDDLZ-2WEX-40	RDDLZ-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	DC 6V, 12V, 24V
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	stainless steel UPVC
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NC Structure:

Thread Connection Dimension (Unit: mm)

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Safety of Solenoid Valve

General solenoid valve is not waterproof, when the conditions do not allow, please choose waterproof type, the factory can be customized.
The highest nominal pressure of the solenoid valve must exceed the highest pressure in the pipeline, otherwise the service life will be shortened or produce other accidents.
Corrosive liquid should be selected all stainless steel type. Explosive environment must choose the corresponding explosion-proof products.
