Duct Air Flow Sensor, RS485/4-20mA/0-5V/0-10V

0 reviews • Write a review

from

$136.92

Ex Tax: $136.92

Stock: In Stock
Model: RDDLZ-FS-RSFS
Weight: 1.00
SKU: RDDLZ-FS-RSFS

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

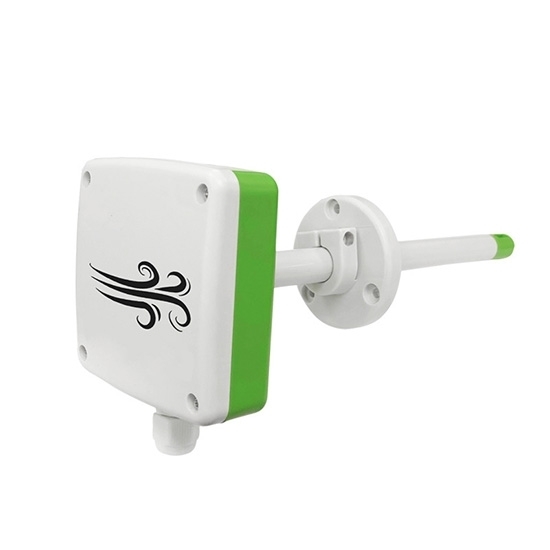

Duct air flow sensor/transmitter is designed for measuring airflow velocity and flow rate in pipelines, with a high-precision wind speed measurement unit that is sensitive and can quickly and accurately measure small wind speeds. It has good stability, small drift, and high accuracy, and can calculate real-time air volume values based on the measured pipeline cross-sectional area.

Features

Duct air flow sensor is suitable for harsh environments such as ventilation ducts and grease exhaust ducts.
The sensor utilizes a full-range secondary calibration method to ensure good linearity and high accuracy.
Its open flange installation design, combined with high-quality silicone sealing rings, reduces air leakage and ensures durability.
Users can set the measurement duct cross-sectional area, and the sensor uploads real-time flow values based on the configured area.
Air flow sensor features an RS485 communication interface that supports the standard ModBus-RTU protocol, with configurable communication address and baud rate, and a maximum communication distance of 2000 meters.
The duct air flow transmitter address can be configured via software or set using a DIP switch, providing ease of use for the operator.
The terminal block uses imported tool-free terminals, allowing users to connect with just a simple press and insert, eliminating the need for tools.
The sensor incorporates specialized EMC anti-interference components, enabling it to withstand strong electromagnetic interference from devices like variable frequency drives.
It is marked with airflow direction indicators, facilitating straightforward installation on-site and ensuring a simple and efficient setup process.

Specification

Model	RDDLZ-RS-FS-01	RDDLZ-RS-FS-02
Output signal	RS485	Analog output (4~20mA/0~5V/0~10V)
Power supply	10-30V DC
Maximum power consumption	0.5W	0.6W
Measurement medium	Air, nitrogen, oil fume exhaust
Accuracy	± (0.2+2% FS) m/s
Operating temperature	-10℃~50℃
Range	0~30m/s
Resolution	0.1m/s
Response time	2s
Long-term stability	≤ 0.1m/s/year
Output resistance	--	≤ 600Ω (4~20mA) or ≤ 250Ω (0~5V/0~10V)
Communication protocol	ModBus-RTU	--
Parameter settings	Set via configuration software	--

Dimension (mm)

Wiring instruction

RS485	Analog output
A: 485-A	V+: Power supply positive (10~30V DC)
V+: Power supply positive (10~30V DC)	GND: Power supply negative, wind speed signal negative
GND: Power supply negative	T: Wind speed signal positive
B: 485-B	--

Note: When wiring the 485 signal line, please note that the A/B lines cannot be connected reversely, and the addresses of multiple devices on the bus cannot conflict.

Installation diagram

Tips: Installation method of duct air flow sensor/transmitter

First, make a hole with a diameter of 20mm on the ventilation duct and insert the air duct into the hole.
Adjust the direction of the equipment so that the arrow direction of the equipment is consistent with the direction of the wind speed. The height of the equipment can be controlled by adjusting the position of the flange.
Install three screws on the flange to fix the equipment and complete the installation.
