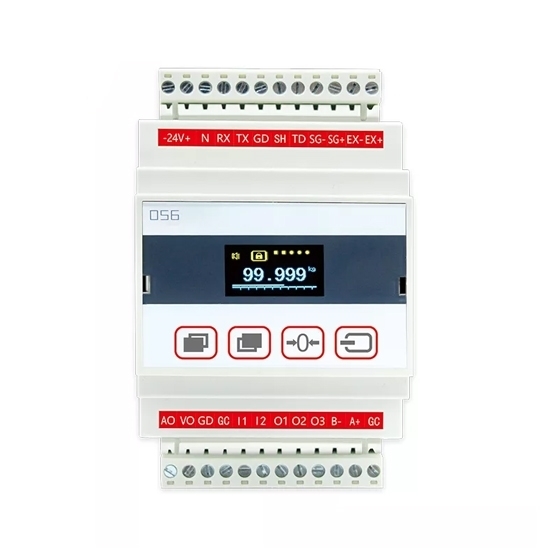

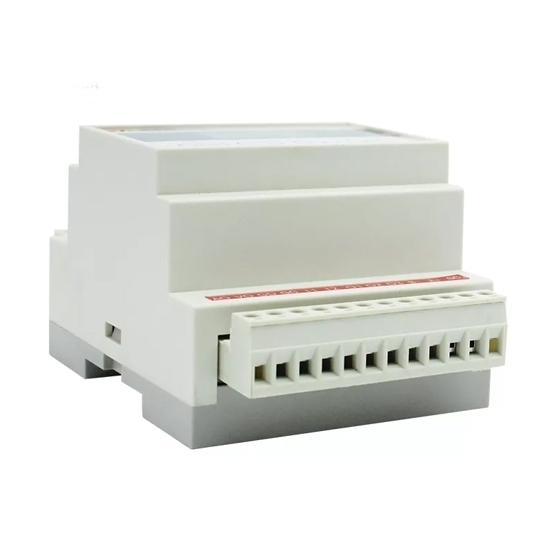

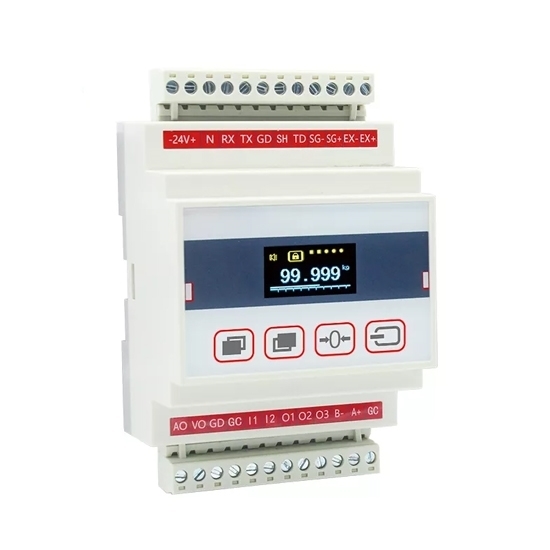

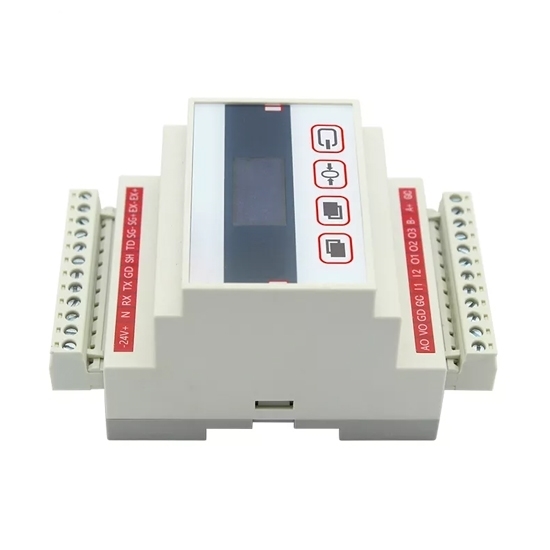

Display Controller For Torque Sensor, RS485 Interface

0 reviews • Write a review

from

$185.29

Ex Tax: $185.29

Stock: In Stock
Model: RDDLZ-DPM-D056
Weight: 1.00
SKU: RDDLZ-DPM-D056

Available Options

Transmit Output

Software

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Favorable price display controller is a digital panel meter used for torque sensors. It is equipped with an RS485 interface for real-time measurement and monitoring and is available in transmit output of 4-20mA, 0-10V, -5V~+5V, and RS232 interface.

Specification

Model	RDDLZ-DPM-D056
Supply Voltage	12~30V DC,<5W
Supply Bridge Voltage	5V/100mA, Proportional Acquisition
Default Configuration	RS485 Interface (Modbus RTU Protocol)
Additional Transmission Output (Optional)	0~10 or -5~5V, 4-20mA, RS232 Interface
Comprehensive Accuracy	0.1%
Non-linearity	0.02%
Fastest Sampling Speed	3200 times/s
Analog Input Signal Range	-15~15mV
Display Graduation	999999 or 99.999
Temperature Drift	<20ppm
Relative Temperature	-20~70℃
Relative Humidity	<90%(No condensation)

Dimension (Unit: mm)

Detail

Wiring Diagram

Application

Tips: How to choose a display controller for torque sensor & load cell?

Choosing the right display controller for a torque sensor or load cell is crucial for accurate measurements and efficient system integration. Here are key factors to consider:

Sensor Compatibility: Ensure the controller supports your sensor’s signal output type (mV/V, 4-20mA, ±10V, or digital output like RS485/Modbus).
Accuracy & Resolution: Choose a high-resolution controller (e.g., 24-bit ADC) for precise readings.
Display & Interface: Look for a clear LCD/LED display and user-friendly interface for easy setup.
Output & Connectivity: Ensure it supports necessary outputs like analog signals, RS485/Modbus, or relay outputs for automation.
Sampling Rate: A high-speed sampling rate is needed for dynamic force measurement.
Environmental Protection: Consider IP-rated enclosures for harsh environments.
Mounting & Power Supply: Ensure it fits your installation needs and power availability.
