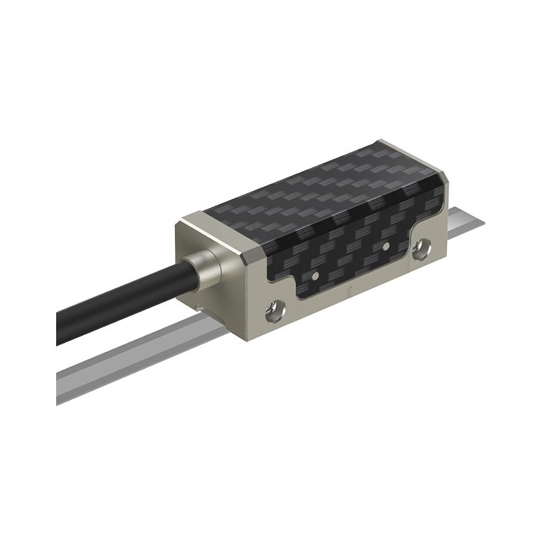

High resolution incremental optical linear encoder offers reliable and precise position measurement solutions at a frequency of 12.5 MHz, effectively enhancing production efficiency by providing accurate real-time positioning data. Optical incremental encoder optimizes workflow processes, streamlines operations, and contributes to improving overall product quality.

Features

• Multi-color indicator lights indicate signal strength, facilitating easy installation.
• It includes a built-in reference zero position for precise measurement initialization.
• The encoder features high flexibility with a bending-resistant braided shielding wire.
• Despite its compact size, it offers high resolution for accurate measurements.
• The optical linear encoder provides a standard AB quadrature digital signal output for compatibility.
• The incremental optical linear encoder utilizes an open non-contact optical system to ensure reliable operation.
• Encased in a stainless steel shell, it boasts strong anti-interference capabilities.
• The incremental encoder incorporates a high-precision measurement system to deliver accurate results.

Specification

Dimension (mm)

Tips: Applications of incremental optical linear encoder

• CNC Machining: Provides accurate axis displacement and position feedback, enhancing machining precision and production efficiency.
• Semiconductor Manufacturing: Ensures stable position feedback for precise equipment operation and micrometer-level accuracy.
• Precision Measurement Equipment: Supports optical measurement systems and coordinate measuring machines, ensuring accurate and repeatable measurement results.
• Medical Devices: Facilitates precise position control and trajectory tracking in surgical robots and imaging equipment, ensuring accuracy and safety in medical procedures.
• Precision Machinery: Essential in aerospace, automotive industries, and scientific research for precise equipment operation and performance.
