Retro-reflective Photoelectric Sensor

0 reviews • Write a review

from

$50.22

Ex Tax: $50.22

Stock: In Stock
Model: RDDLZ-PHOS-RR
Weight: 1.00
SKU: RDDLZ-PHOS-RR

Available Options

Dimension

Textarea

Model Selection for M12*1

Model Selection for M18*1

Model Selection for M30*1.5

Model Selection for 15.5*21*41mm

Model Selection for 10.8*20*31mm

Model Selection for 18*50*50mm

Model Selection for 25*65*75mm

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

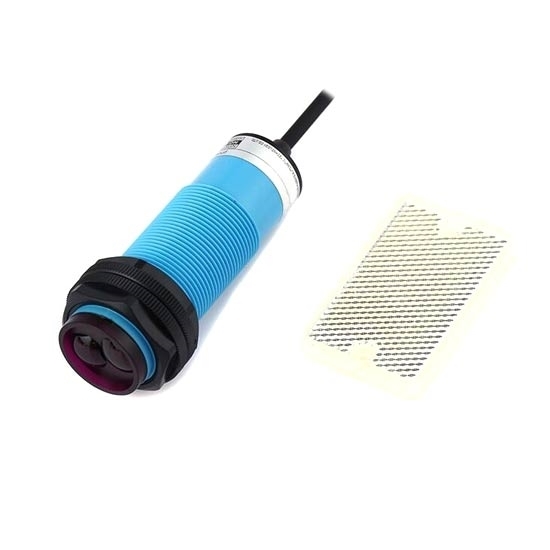

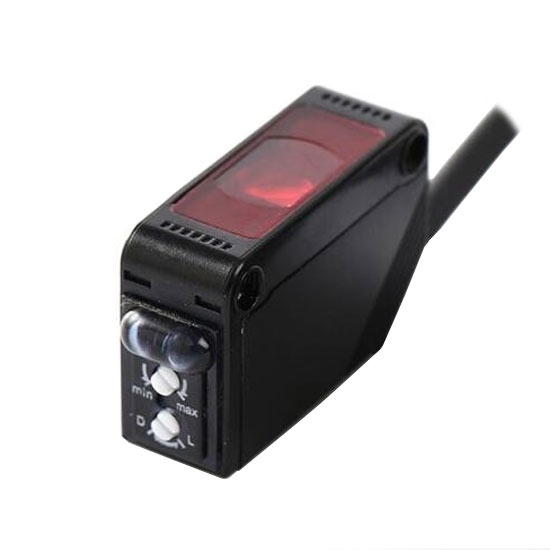

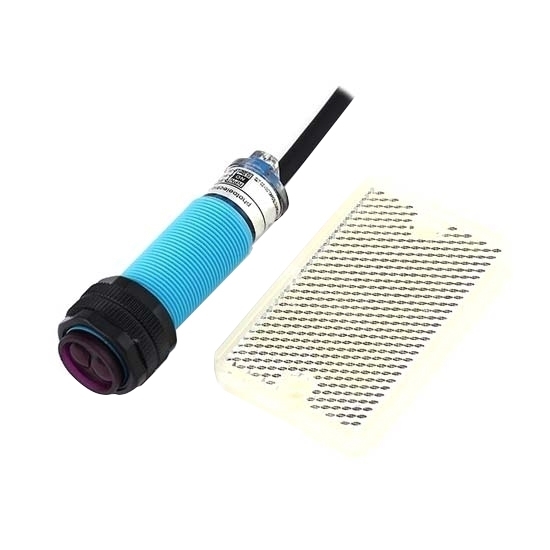

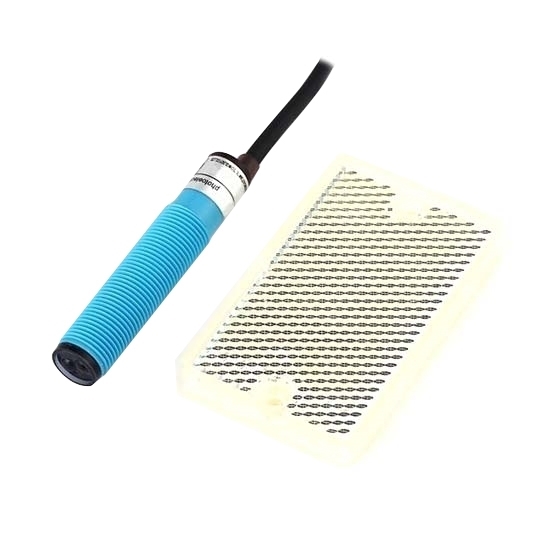

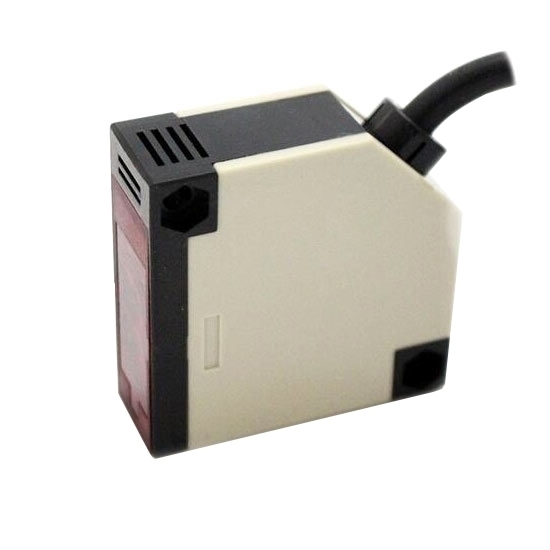

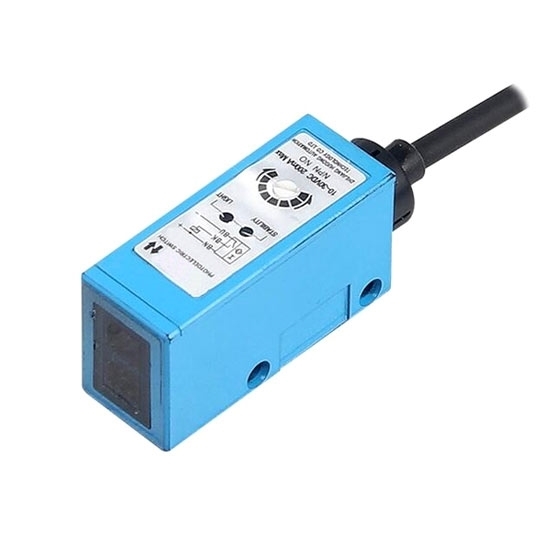

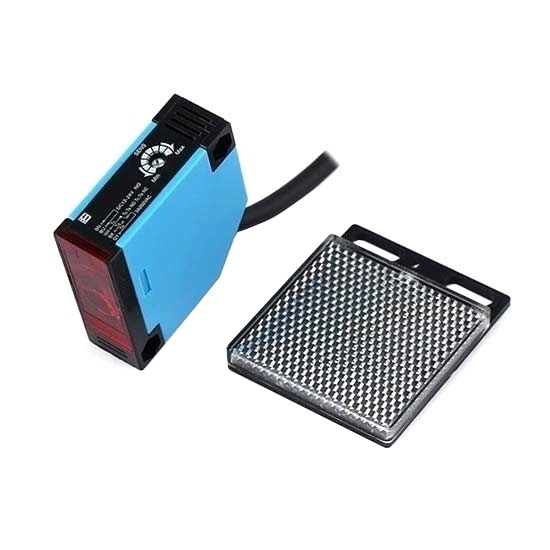

Retro-reflective photoelectric sensor with reverse power protection, short circuit protection, current overload protection, can be directly connected with PLC.

Applications: Photoelectric sensors have been used as position detection, liquid level control, product counting, width discrimination, speed detection, fixed length cutting, holes recognition, signal delay, automatic door sensing, color scale detection, punching and cutting Machine and security and many other areas. In addition, using the stealthiness of infrared, photoelectric sensors also can be used as a burglar alarm in banks, warehouses, shops, and offices.

Specification:
1. DC/AC output:

Type		Round type		Square amplifier built-in type
Dimension		M18*1	M30*1.5	15.52141mm	10.82031mm
DC type	NPN	NO	NO	NO	NO
		NC	NC	NC	-
		NO+NC	NO+NC	-	-
	PNP	NO	NO	NO	NO
		NC	NC	NC	-
		NO+NC	NO+NC	-	-
AC type	Two-wire	NO	NO	-	-
		NC	NC	-	-
Detection range		2m±10%	4m±10%	1m±10%	4m±10%
Detection target		Opaque object
Detection range regulation		Sensitivity controller	Sensitivity controller	Fixed	Sensitivity controller
Response time		1ms
Connection delay		1.5ms
Light source		Infrared light 660nm
Power supply		DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage		AC1000V 50/60Hz 1min between charging part and housing
Voltage influence		Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current		N/P type: ≤20mA, A type: ≤1.7mA
Control output		N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times)
Loop protection		N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity		Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence		Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance		≥50MΩ (DC500 megameter) between charging part and housing
Material		Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA
Protection class		IP67
Cable length		1.2m

2. Relay output:

Type	Square relay built-in type
Dimension	185050mm	256575mm
Relay output	DC illuminated	DC illuminated
	AC illuminated	AC illuminated
	DC non-illuminated	DC non-illuminated
	AC non-illuminated	AC non-illuminated
Detection range	4m±10%	4m±10%
Detection target	Opaque object	Opaque object
Detection range regulation	Sensitivity controller	Sensitivity controller
Response time	30ms	30ms
Response frequency	DC: 0.5kHz, AC: 25kHz
Delay distance	≤10% detection distance
Connection delay	1.5ms
Light source	Infrared light 660nm
Supply voltage	DC type: DC 12-24V (6-36V), Impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz; DC/AC type: DC 12-240V/AC 24-240V, 50/60Hz
Withstand voltage	AC1000V 50/60Hz 1min between charging part and housing
Voltage influence	Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Power current	≤3VA
Control output	≤2A (contact service life: 0.1 million times)
Allowed impulsion and vibration	B≤30g, T≤11ms, f≤55Hz, a≤1mm
Ambient temperature & humidity	Operation temperature/storage temperature: -30~65℃ (no freeze, no drew); Operation humidity/storage humidity: 35~95%RH
Temperature influence	Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance	≥50MΩ (DC500 megameter) between charging part and housing
Material	Housing: Aluminum die casting (ABS), Detection surface (lens): PMMA
Protection class	IP65
Cable length	1.2m

Wiring diagram:

Tips: How to install a retro-reflective photoelectric sensor?

When in choosing working point, installation and using a retro-reflective photoelectric sensor ensure that the infrared light receiver must work in the cut-off zone and the saturation zone.
The front end face of the photoelectric sensor and the surface of the detection workpiece or object must be kept parallel, so that the conversion efficiency of the photoelectric sensor can be highest.
The distance between the front end face of the retro-reflective photoelectric sensor and the reflective board remains within the specified range.
Retro-reflective photoelectric sensor must be installed in the place without direct strong light source.
The infrared projector current should be set at 2 ~ 10mA, because the luminous intensity and current linearity is the best. If the current is too large, the light attenuation of infrared projector will be big, and there is an affect of the life for a long working time. If in the case of battery supply, the current should be small, and the anti-interference ability will be decrease at this moment. Attention should be paid to avoid adverse factors such as external light interference.
