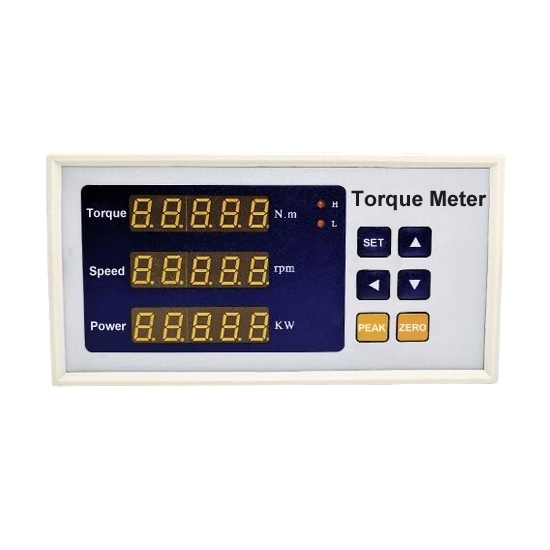

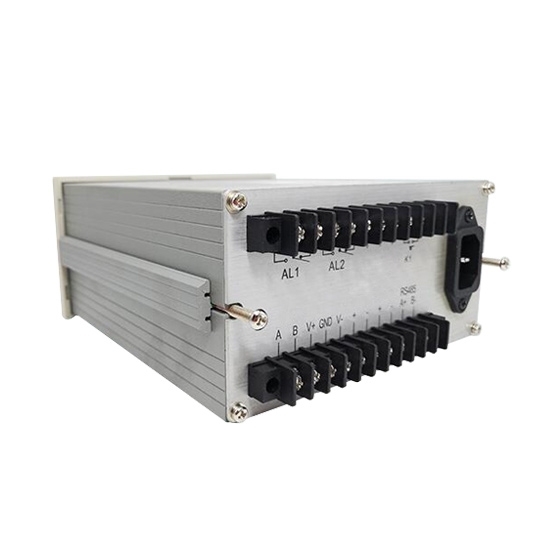

Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit

Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit
Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit
Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit
Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit
Digital Torque Meter For Dynamic Torque/Speed/Power, 5 Digit
0 reviews • Write a review
from
$489.98
Ex Tax: $489.98
  • Stock: In Stock
  • Model: RDDLZ-DPM-RTS5D
  • Weight: 1.00
  • SKU: RDDLZ-DPM-RTS5D

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Digital torque meter can be used for measuring dynamic torque, speed and power at the same time, has functions such as zero tracking, low/high alarm and peak value display.

Specification:

BasicsModelRDDLZ-DYN-302
Dimension160*80*170mm horizontal, hole size 152*76mm
Shipping weight2 kg
Technical parametersDisplayMeasuring range of torque: -99999~99999 Nm
Display value of torque: 0~99999 Nm
Display value of speed: 0~99999 rpm
Display value of power: 0~99999 kW
Measuring resolutionMeter resolution: 1/1000000, display resolution: 1/120000
Measuring speed25 times/second
Display method3-channel 5 digit LED display
Meter power supply220VAC, 50/60Hz
Input signalVarious pulse signal: NPN, PNP, OC gate output signal of sensors, proximity sensors, rotary encoders
Measuring frequencyInput pulse of torque: 5kHz~15kHz
Input pulse of speed: 0.3Hz~20kHz
AlarmThree alarm outputs for L/H alarm
Analog signal output2-channel DC 4-20mA output signals (resolution: 1/4000, error: ＜0.2%FS, load capacity: ≤600Ω, optical isolation)
Communication output*RS485 or RS232 (optical isolation)
External power supply *±15VDC or 24VDC (≥300mA, provide power supply for torque sensor)
Working environmentTemperature: -10~+70℃ (14~158℉), humidity: 0~90%RH (no condensation)

Wiring diagram:
