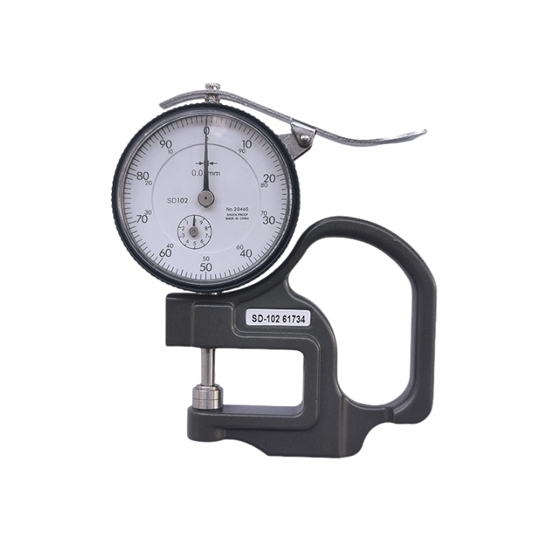

Dial Thickness Gauge For Paper/Film/Leather

0 reviews • Write a review

from

$103.09

Ex Tax: $103.09

Stock: In Stock
Model: RDDLZ-TG-SD102
Weight: 1.00
SKU: RDDLZ-TG-SD102

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dial thickness gauge is a precision instrument used to measure the thickness of materials such as paper, plastic, leather, and metal sheets. It features a dial indicator that displays thickness measurements in fine increments, ensuring high accuracy.

Specification

Model	RDDLZ-SD-102
Measuring Range	0-10mm
Probe Type	Flat Head
Probe Material	Alloy
Resolution	0.01mm
Tolerance	±0.02mm
Throat Depth	30mm
Applicable	Used to measure flat materials such as leather, paper, film, etc.

Dimension

Details

Tips: What is a dial thickness gauge?

A dial thickness gauge is a precision measurement tool designed to determine the thickness of various materials quickly and accurately. It consists of a sturdy frame, a spring-loaded anvil and spindle, and a dial indicator that displays measurements in fine increments, often down to fractions of a millimeter or thousandths of an inch.

These gauges are widely used in industries like manufacturing, quality control, and material testing to measure the thickness of items such as paper, plastic, rubber, leather, textiles, and thin metals. The anvil and spindle press gently against the material, ensuring uniform pressure for consistent readings.

Available in both analog and digital versions, dial thickness gauges are prized for their reliability and ease of use. Compact and portable, they are suitable for both lab and fieldwork. To ensure accurate measurements, regular calibration and maintenance of the device are recommended.
