90W 3 Phase AC Vibration Electric Motor, 220V/380V

0 reviews • Write a review

from

$312.58

Ex Tax: $312.58

Stock: In Stock
Model: RDDLZ-AVM-MVE2003
Weight: 1.00
SKU: RDDLZ-AVM-MVE2003

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

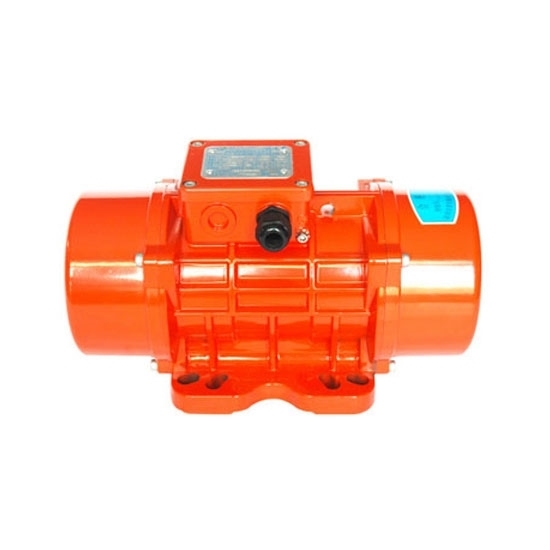

Buy a three phase 220V/380V AC vibration motor online. With 90W power, 50Hz frequency. 2900 rpm speed, 2 pole, 198kg force, CE certification and IP65 waterproof function, the micro vibrating electric motor is suitable for mining, metallurgy, construction, food, etc.

Specifications

Model	RDDLZ-MVE2003
Phase	3 Phase
Pole	2 Pole
Force	198 Kg, 2 kN
Speed	2900 rpm
Power	90W (0.09kW)
Current	0.35A
Voltage Class	220V/380V
Weight	7.6 kg
Frame No.	20
Frequency	50 Hz/60 Hz
Protection Rank	IP65
Insulation Class	F
Certificate	CE
Warranty	12 Months

Dimension (Unit: mm)

A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
62-74	106	227	131	159	15	9	64	121	119	54	112	M20*1.5

Internal Structure

Applications

RDDLZ 90W 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: Why adjust the vibration force of the vibration motor?

The exciting force of the vibrating electric motor is the centrifugal inertia force generated by the high-speed rotating eccentric mass. Change the eccentricity, thereby changing the amplitude of the exciting force, to achieve the effect of adjusting the exciting force. By adjusting the magnitude of the exciting force, the highest productivity can be achieved and the service life of the vibration motor can be prolonged.
