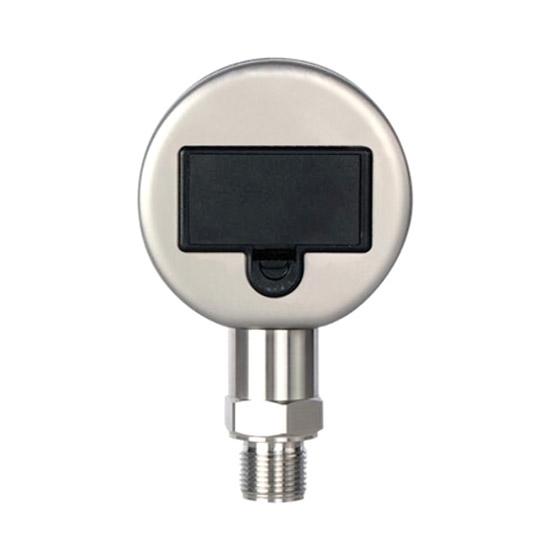

Digital Pressure Gauge For Air/Oil/Water/Hydraulic

0 reviews • Write a review

from

$157.14

Ex Tax: $157.14

Stock: In Stock
Model: RDDLZ-PREG-Y290
Weight: 1.00
SKU: RDDLZ-PREG-Y290

Available Options

Pressure Type

Measuring Range

Thread of Pressure Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

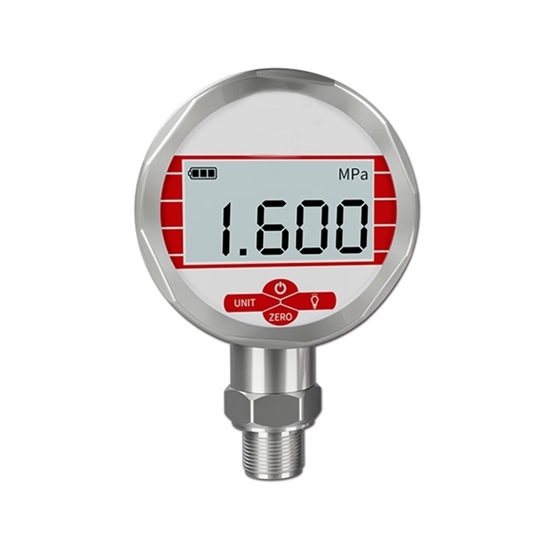

Digital pressure gauge for air/oil/water/hydraulic pressure measurement has 4 digit LCD display with backlight.

Application: Digital air/oil/water/hydraulic pressure gauge is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Specification:

Model	RDDLZ-PREG-Y290
Weight	0.5kg
Measuring range *	-0.1~60MPa (-1~600bar/-14~8702psi)
Pressure type	Gauge pressure (standard), absolute pressure, sealed pressure
Measure medium	Air, oil, water, hydraulic
Power supply	DC 3V (2*1.5V AAA dry cell)
Display	4 digit LCD display with backlight
Accuracy	±0.5%FS
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	150%FS (＜40MPa), 120%FS (≥40MPa)
Frequency response (-3dB)	5kHz~650kHz
Diameter of dial plate	80mm
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Sampling time	5 times/s
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-20~+70℃ (-4~+158℉)
Material	Housing: 304 stainless steel Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable) Battery compartment: ABS
Protection class	IP65

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

Digital pressure gauge dimension drawing (unit: mm):

Tips: How to set the digital pressure gauge?

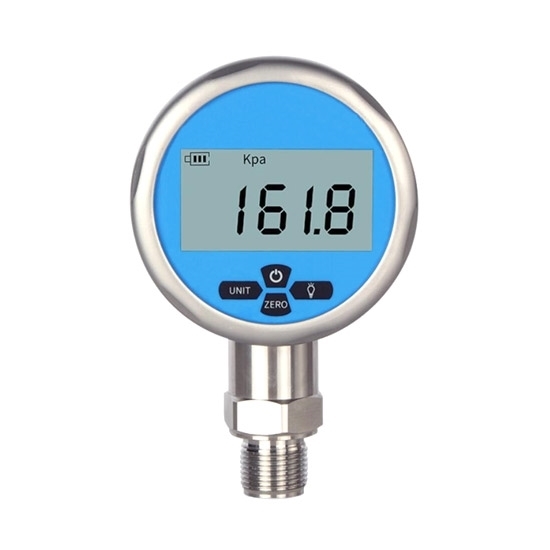

There are 4 keys on the digital pressure gauge and they're POWER key, UNIT key, ZERO key and LIGHT key. The specific key operations and calibration settings are as follows:

POWER key: Long press POWER key 5s for power on/off.
UNIT key: Short press UNIT key to change unit according to the order of KPa, PSI, kgf/cm², Bar, MPa. Long press UNIT key 5s to check peak value (MAX), then short press UNIT key to check valley value (MIN).
ZERO key: Long press ZERO key 5s to finish zero calibration.
LIGHT key: Short press LIGHT key, light on/off. The time of light on is about 70s.
