80W Single Phase AC Vibration Electric Motor, 220V/110V

0 reviews • Write a review

from

$145.62

Ex Tax: $145.62

Stock: In Stock
Model: RDDLZ-AVB-TB802S2
Weight: 1.00
SKU: RDDLZ-AVB-TB802S2

Available Options

AC Voltage

With Speed Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

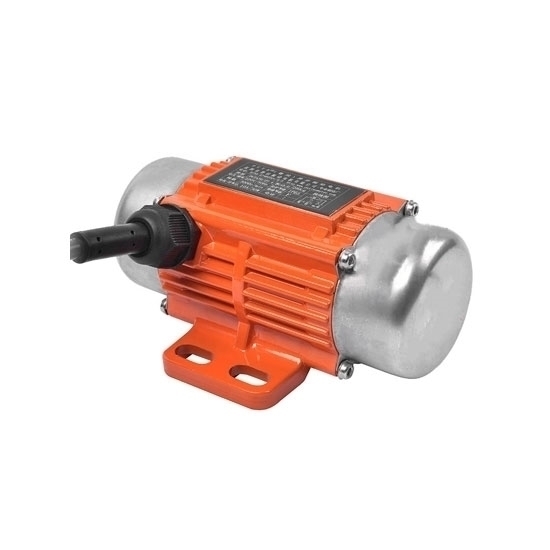

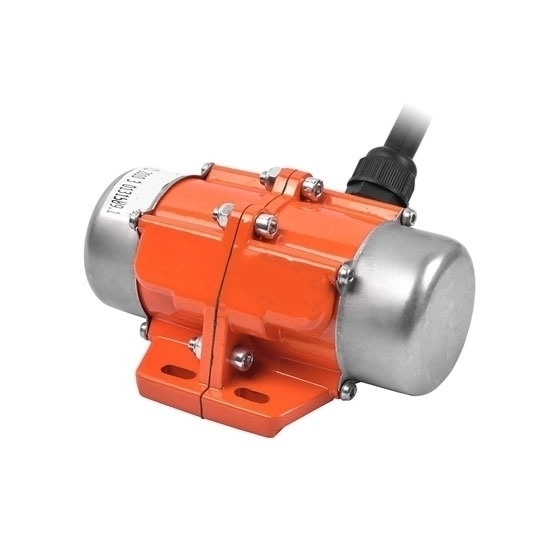

220V/110V AC single phase vibrating electric motor has 80W power, 2 pole, CE certification, IP65 waterproof function, and 50Hz 3000rpm & 60Hz 3600rpm frequency. Matched with a vibration motor speed control, special for industrial needs.

Features

Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Model	RDDLZ-AVB-TB802S2
Power	80W
Voltage	AC 220V/AC 110V
Current	0.218A/0.615A
Frequency	50 Hz	60Hz
Rated Speed	3000rpm	3600rpm
Force	81 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Phase	Single Phase
Pole	2 Pole
Material	Aluminum Alloy
Protection Rank	IP 65
Weight	2.5 kg

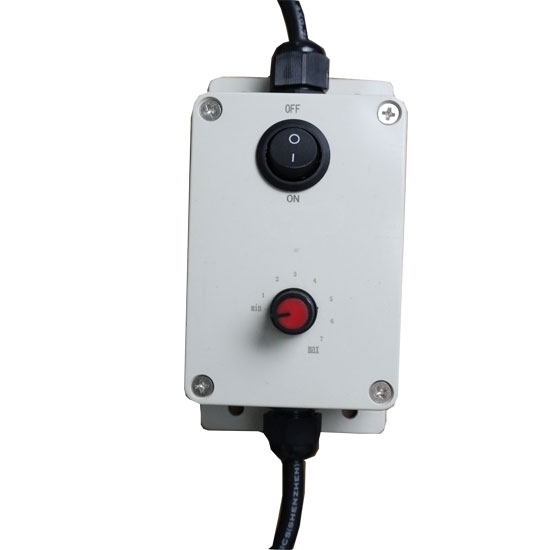

Optional Accessories	Speed Controller
Frame No	2
Certificate	CE

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2	175.5	110	79.5	10	26.5	36.5	63	38.5	66	91.5	8.5	25.5	66	M-16

Internal Structure

Applications

RDDLZ 80W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: What are the applications of this single-phase AC vibration motor?

This single-phase AC vibration motor series is used in a wide range of industrial, commercial, and laboratory applications, including:

Screening Equipment – Used in vibrating screens to separate different materials (e.g., sand, gravel, powders).
Material handling & conveying – Helps move materials in vibrating feeders and hoppers.
Concrete compaction – Used in vibration tables for concrete molds and precast structures to eliminate air bubbles.
Medical & fitness equipment – Used in massage chairs, vibration therapy devices, and fitness platforms.
Laboratory & research applications – Used in soil analysis, material testing, and pharmaceutical processing.
