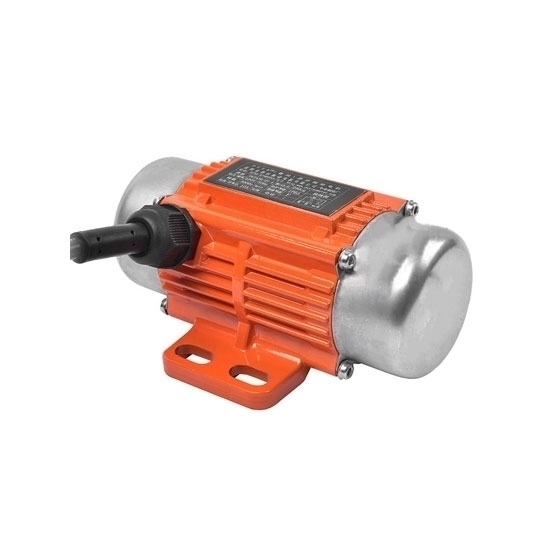

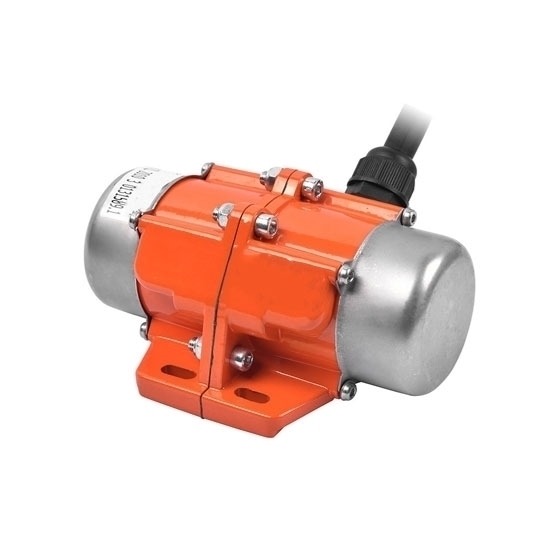

70W Single Phase AC Vibration Electric Motor, 220V/110V

0 reviews • Write a review

from

$142.98

Ex Tax: $142.98

Stock: In Stock
Model: RDDLZ-AVB-TB702S2
Weight: 1.00
SKU: RDDLZ-AVB-TB702S2

Available Options

AC Voltage

With Speed Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price 70W 1 phase vibrating motor is an asynchronous vibration electric motor, can be used for shake-off materials attached to pipes. 220V/110V AC voltage, 50Hz 3000rpm & 60Hz 3600rpm frequency, 2 pole, CE certification and IP65 waterproof, small size and long service life.

Features

Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Model	RDDLZ-AVB-TB702S2
Power	70W
Voltage	AC 220V/AC 110V
Current	0.195A/0.545A
Frequency	50 Hz	60Hz
Rated Speed	3000rpm	3600rpm
Force	72 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Phase	Single Phase
Pole	2 Pole
Material	Aluminum Alloy
Protection Rank	IP 65
Weight	2.5 kg

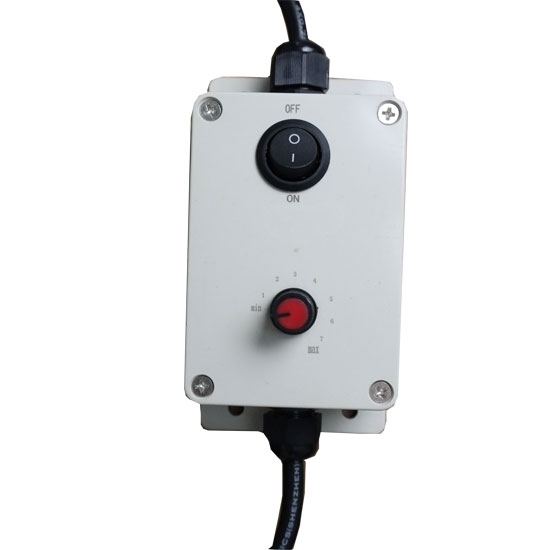

Optional Accessories	Speed Controller
Frame No	2
Certificate	CE

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2	175.5	110	79.5	10	26.5	36.5	63	38.5	66	91.5	8.5	25.5	66	M-16

Internal Structure

Applications

RDDLZ 70W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: What is the operating voltage of this AC vibration electric motor?

The standard operating voltage for the AC vibration electric motor is either 110V AC or 220V AC, depending on the model and the region where it is used. Different countries have different electrical standards, so selecting the correct voltage version is crucial to ensure proper performance and avoid electrical issues.

If the motor is supplied with incorrect voltage, several issues may occur:

If the voltage is too low, the motor may fail to start, produce weak vibrations, or overheat due to excessive current draw.
If the voltage is too high, the motor may overheat quickly, sustain damage to its winding insulation, and have a significantly reduced lifespan.
Before installation, always check the motor nameplate or manufacturer’s specifications to confirm that the voltage matches your power supply. If unsure, using a voltage stabilizer or regulator can help maintain a stable and safe operating voltage.
