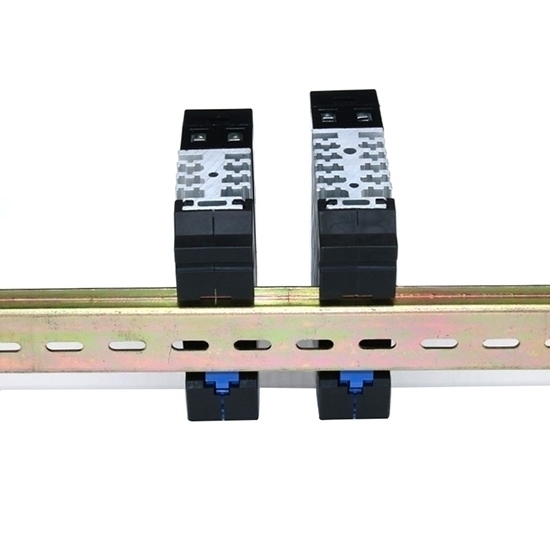

80A SSR Solid State Relay, 3-32V DC To DC, Din Rail Mount

80A SSR Solid State Relay, 3-32V DC To DC, Din Rail Mount
80A SSR Solid State Relay, 3-32V DC To DC, Din Rail Mount
0 reviews • Write a review
from
$78.44
Ex Tax: $78.44
  • Stock: In Stock
  • Model: RDDLZ-SSR-DS80DD
  • Weight: 1.00
  • SKU: RDDLZ-SSR-DS80DD

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

SSR-80A single phase solid state relay adopts a high-efficiency spring structure and has a high life. High mechanical strength, reliable and stable. The shell of solid state relays is waterproof, moisture proof, wear resistant, high temperature resistant, dustproof and oil resistant. Widely used in Industrial automation.

  • Exquisite workmanship
  • Photoelectric isolation
  • SSR output
  • LED indicator for operation status
  • Removable protective cover for safety
  • Panel mount
  • Zero-crossing switch type

Specification

ModelRDDLZ-SSR-DS80DD
Voltage TypeDC-DC
Load Current80A
Load Voltage3-75V DC
Control Voltage3-32V DC
Max Input Current12mA
Must Operation Voltage2.8V DC
Must Release Voltage1.5V DC
Max On-stage Voltage Drop≤0.2V
Peak Voltage75V DC
Operation Temperature-20℃ to 80℃
Max Off-state Leakage Current12mA
Dielectric Strength2500V
Weight245g
CertificatesCE, ROHS


Dimension

Wiring Diagram

Tips: Selection of voltage level of solid state relay

When the peak voltage applied to the AC terminals of the SSR exceeds the maximum voltage peak that the SSR can withstand, the SSR will be damaged by the voltage breakdown of the components inside the SSR. If the voltage value is too large, the SSR will not be protected. Please try to select within the following range.

When the AC load is a 220V resistive load, a 220V voltage level SSR can be selected. When the AC load is 220V inductive load or the AC load is 380V resistive load, the SSR of 380V voltage level can be selected. When the AC load is an inductive load of 380V, an SSR with a voltage level of 480V can be selected. For other occasions with special requirements and high reliability requirements, such as power compensation capacitor switching, motor forward and reverse rotation, etc., SSRs with a voltage level of 480V must be selected.
