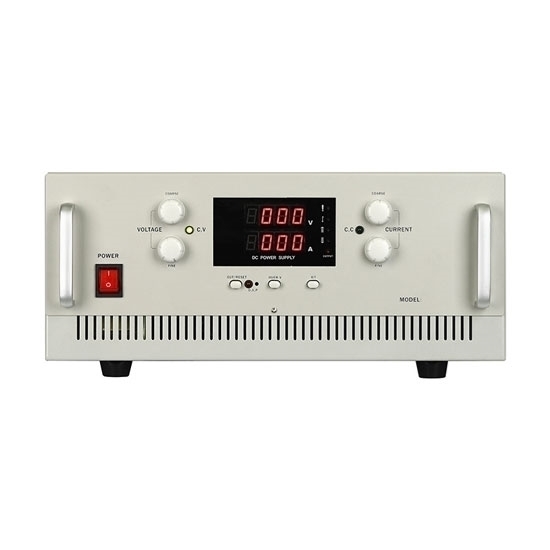

80A 100V 8000W Variable DC Power Supply

0 reviews • Write a review

from

$2,832.89

Ex Tax: $2,832.89

Stock: In Stock
Model: RDDLZ-VDCPS10080K
Weight: 1.00
SKU: RDDLZ-VDCPS10080K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

80 amp 100 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential device for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	RDDLZ-JK10080K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-100V
Output Current Range	0-80A
Output Power	8000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

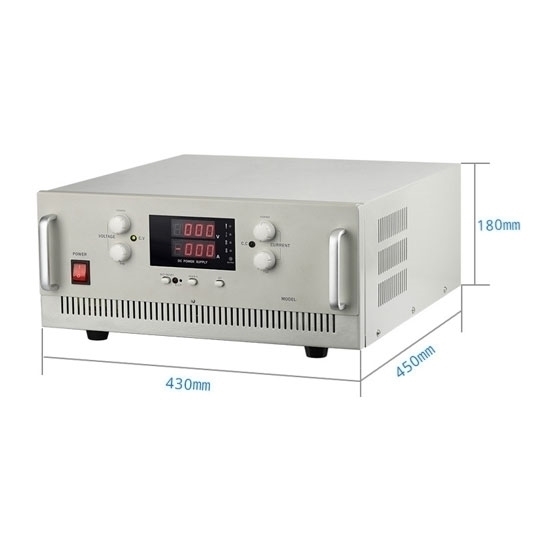

Size	430 (L) x 450 (W) x 180 (H) mm
Weight	26kg

Detail

Tips: Can a variable DC power supply be used in conjunction with other lab equipment?

Yes, a variable DC power supply can be seamlessly integrated with various lab equipment. It provides a stable and adjustable voltage output, making it versatile for powering and testing electronic circuits, components, and devices. This flexibility is crucial when working with instruments like oscilloscopes, function generators, and multimeters, allowing precise control of the voltage levels for different experiments or measurements. The variable nature of the power supply enables users to simulate different operating conditions and troubleshoot electronic systems effectively. Additionally, its compatibility with other equipment in the lab enhances the overall functionality, supporting a wide range of experiments and research activities. In summary, a variable DC power supply is a valuable tool in any laboratory setting, complementing and enhancing the capabilities of other equipment for diverse electrical and electronic applications.
