800kg Swing Gate Opener, 4m, 12mm/s, 120°

0 reviews • Write a review

from

$2,523.07

Ex Tax: $2,523.07

Stock: In Stock
Model: RDDLZ-OPENER-800kg
Weight: 1.00
SKU: RDDLZ-OPENER-800kg

Available Options

Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

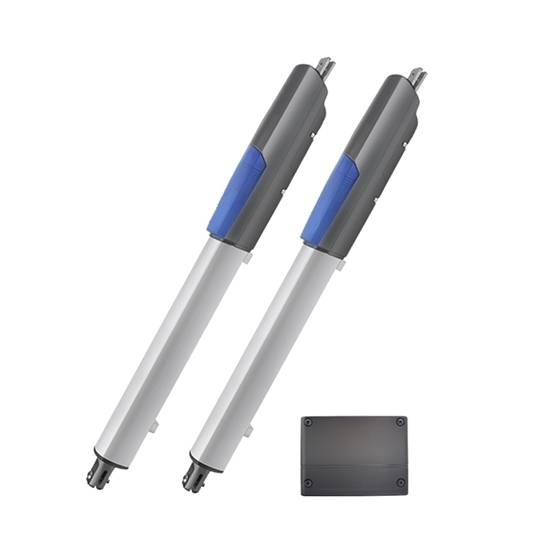

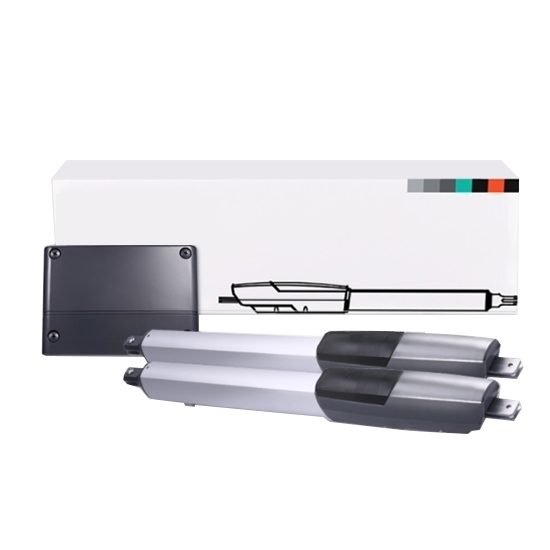

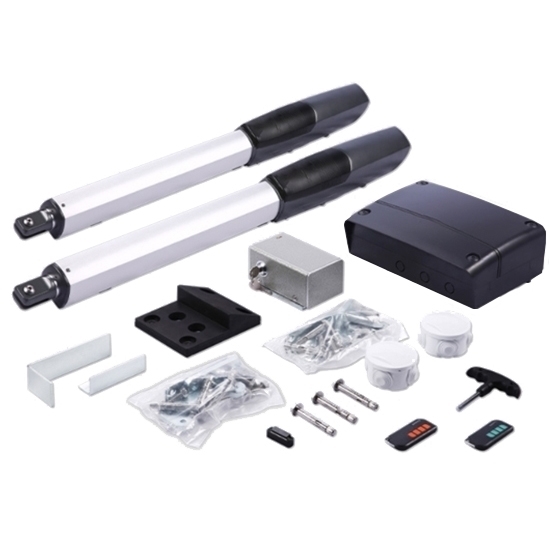

RDDLZ swing gate opener with mechanical limit and automatic control. The weight up to 800 kg. Motor voltage is 24V DC. The package weight is 20.8kg for double arm suit and 13.5kg for single arm suit. The remote control distance can reach 80m.

FEATURES:

RDDLZ 800kg swing gate opener has beautiful high strength aluminum alloy shell.
It adopts the control box made of polycarbonate material and has the characteristics of strong waterproof.
The LED lamp device of motor arm of RDDLZ 800kg swing gate opener .
It is equipped with a sophisticated manual clutch device to ensure the normal operation of the store machine in case of power failure.

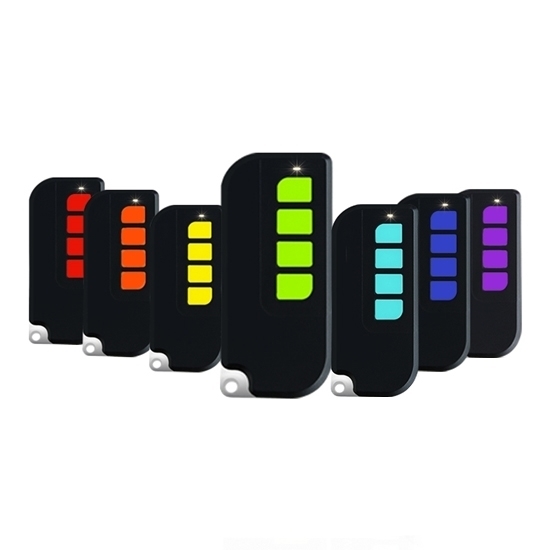

And it has high-grade GnS remote control handle.

SPECIFICATION:

Techncal Specifications	RDDLZ PK460
Max Gate Weight (per leaf)	800kg
Max Gate width (per leaf)	4m (The use of an electro-mechanic lock is recommanded on leafes longer than 1.8m)
Max Stroke Length	300mm
Max Speed	12mm/s
Max Opening Angle	120°
Duty Cycle	40%
Motor	24V DC
Degree of Protection	IP54
Operating Temperature	-20C to +50°C
Limit Switch Type	Mechanical limit switches with electronic running way adaption
Radio	Keeloq hopping code, 433mHz
TX Capacity	Standard 2, max. 27 transmitter (remotes)
Maximum Distance	80m
Weight(Double Arm/Single Arm)	20.8kg /13.5kg

DIMENSION (Unit=mm)

APPLICATIONS:

RDDLZ swing gate openers are widely used all over the world and many kinds of places. Such as steel gates, aluminum gates, wooden gates, industrial floding doors.

TIPS: The RDDLZ 800kg Swing Gate Opener Cautions for Use

The RDDLZ 800kg swing gate opener body area should be at least 50% open for wind force relief,
Gate length per leaf should not exceed 2.5m (PK260), 3.0m (Pk460).
If gate length per leaf exceeds 1.8m, the installation of an electrome chanical ground-lock is mandatory, important requirements
This product must be installed by a qualified installer in accordance with allapplicable codes and standards.
Instructions in this manual must be understood and be followed thoroughly.
Children or disabled persons are not allowed to operate this product.
