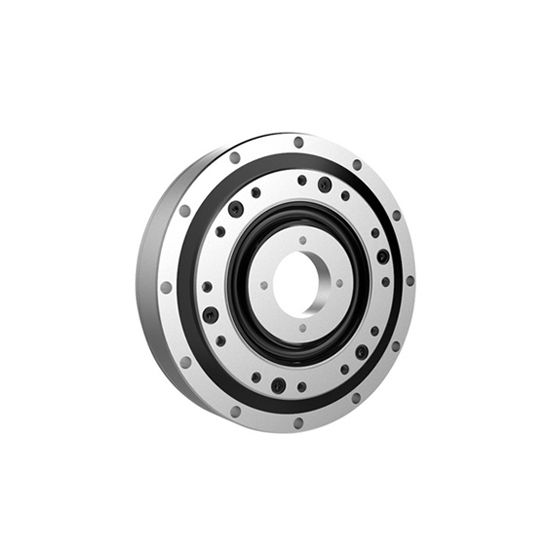

80 Mm Strain Wave Harmonic Drive Gearbox, Ratio 50~100

0 reviews • Write a review

from

$427.72

Ex Tax: $427.72

Stock: In Stock
Model: RDDLZ-HD-80
Weight: 1.00
SKU: RDDLZ-HD-80

Available Options

Short Description

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a high torque 80mm harmonic drive at low cost. A harmonic drive gearbox provides high transmission accuracy and supports a single-stage high reduction ratio with low inertia. Strain wave gear has 30/50/80/100 reduction ratios, commonly used for industrial robots, CNC equipment, medical instruments, and military industry.

Features

The lightweight strain wave harmonic drive gearbox has an ultra-thin hollow, compact and simple structure.
Excellent positioning accuracy and rotation accuracy.
Harmonic gearing with a high torque capacity and a high gear ratio is available.

Specifications

Model: RDDLZ-SHD-17
Diameter: 80 mm
Thickness: 18.5 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Number of stages: Customized
Gear ratio: 50, 100, other gear ratios please contact us.

Parameters

Gear ratio	50	100
Rated torque when input 2000r/min (N.m)	11.00	16.00
Allowable peak torque at start and stop (N.m)	23.00	37.00
Maximum allowable average load torque (N.m)	18.00	27.00
Momentary allowable maximum torque (N.m)	48.00	71.00
Allowable maximum input speed (r/min)	7000
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤10
Design life (hour)	10000

80mm strain wave harmonic drive gearbox dimensions (unit: mm)

Strain wave harmonic drive gearbox applications

Tips: Strain wave harmonic drive gearbox applications

Strain wave harmonic drive gearboxes are used in aviation, aerospace, energy, navigation, shipbuilding, bionic machinery, commonly used ordnance, machine tools, instruments, electronic equipment, mining and metallurgy, transportation, lifting machinery, petrochemical machinery, textile machinery, agricultural machinery and medical treatment Equipment and other aspects have been increasingly widely used, especially in the servo system with high dynamic performance, the use of harmonic gear transmission shows its superiority. It transmits power from tens of watts to tens of kilowatts, but high-power harmonic gear drives are mostly used for short-term work.
