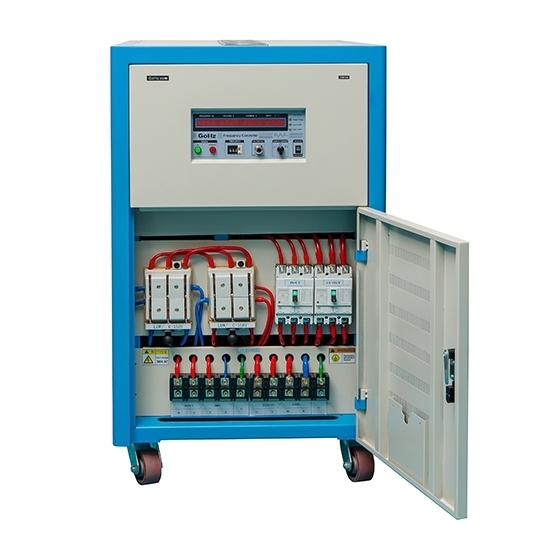

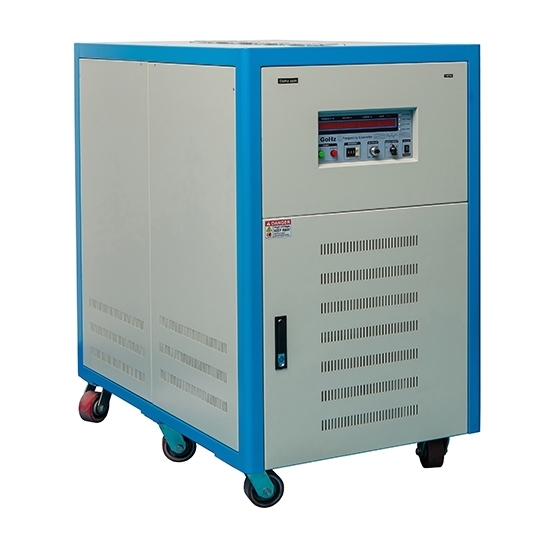

75kVA 3-Phase 400v 50Hz/240v 60Hz Frequency Converter

Free Shipping

75kVA 3-Phase 400v 50Hz/240v 60Hz Frequency Converter

0 reviews • Write a review

from

$19,164.91

Ex Tax: $19,164.91

Stock: In Stock
Model: HZ-50-3375
Weight: 1.00
SKU: HZ-50-3375

Available Options

Input Voltage (Three Phase)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Reasonable price 75kVA solid state frequency converter, step up three phase 208V/220V to 380V/415V, step down 480V to 400V, convert fixed frequency to variable-frequency and variable-voltage.

Specification:

Model	HZ-50-3375
Capacity	75 kVA
Dimension	12007501270 mm
Weight	575 kg

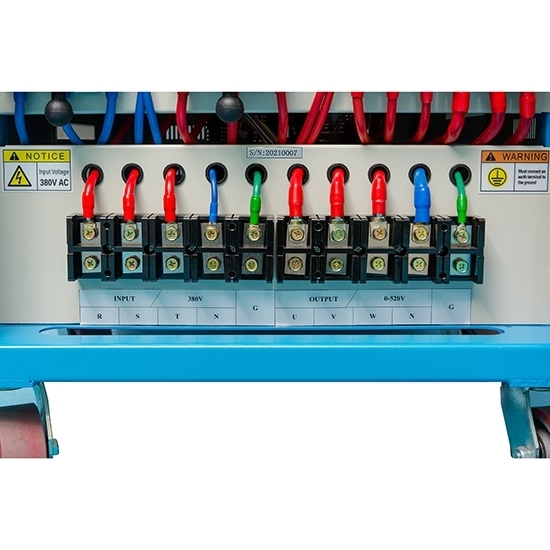

Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%

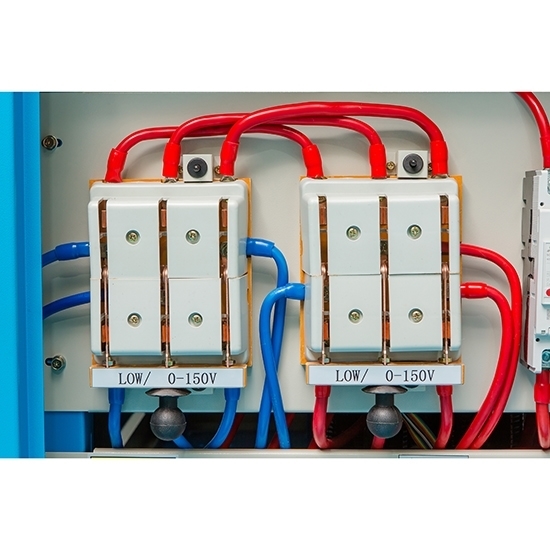

Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 208.4A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 104.2A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%

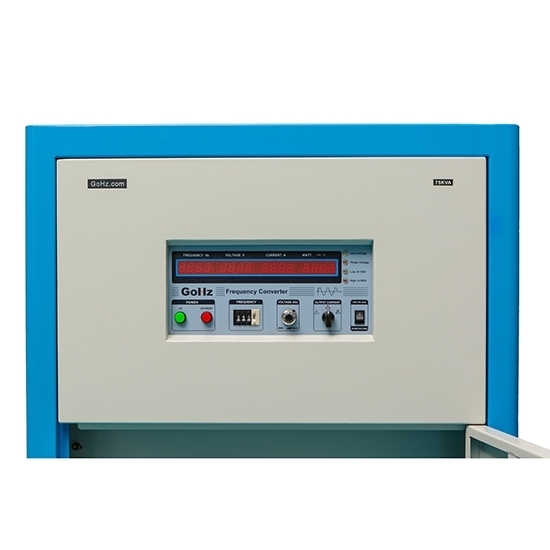

	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months
