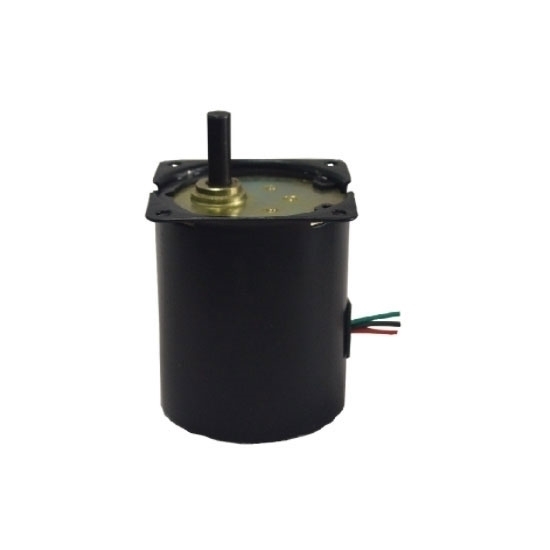

75 Rpm AC Synchronous Gear Motor, 24V/110V/220V

75 Rpm AC Synchronous Gear Motor, 24V/110V/220V
75 Rpm AC Synchronous Gear Motor, 24V/110V/220V
0 reviews • Write a review
from
$83.95
Ex Tax: $83.95
  • Stock: In Stock
  • Model: RDDLZ-60TYD-B75
  • Weight: 1.00
  • SKU: RDDLZ-60TYD-B75

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.

Specification

ModelRDDLZ-60TYD-B75
Duty TypeS1 ContinuesS2 (30 mins)
Voltage (AC)24V110V220V-240V24V110V220V-240V
Power Frequency50/60 Hz50/60 Hz
Output Speed75 rpm
Output Torque6 Kgf·cm8 Kgf·cm
Rated Speed1200 rpm1200 rpm
Input Power< 17W< 25W
Input Current< 0.65A< 0.15A< 0.08A< 1.5A< 0.35A< 0.2A
RotationCW/CCW (Reversible)CW/CCW (Reversible)
Operating Temperature-15 ~ 40℃-15 ~ 40℃
Coil Temperature Rise< 80K< 80K
Insulation ClassBB
Insulation StrengthAC 1500/ 50Hz/minAC 1500/ 50Hz/min
Recommended Capacitance47μF/ 63V2.2μF/ 250V0.56μF/ 450V67μF/ 63V3.0μF/ 250V0.8μF/ 450V

Dimension (Unit: mm)

Detail

Tips: Variable frequency control of AC PM synchronous motor

The electromagnetic torque of AC synchronous motor is related to the size of the included angle α between the stator and rotor magnetic field axis.
For permanent magnet synchronous motors with hidden pole rotor (p=1),
When α=0°, only radial force is applied to the rotor, no electromagnetic torque is formed.
When 0° < α < 90°, the force applied to the rotor can be decomposed into a radial component and a tangential component, in which the tangential component produces the electromagnetic torque.
When α=90°, the rotor is only subjected to tangential force, and the electromagnetic torque is the maximum, which is called the maximum synchronous torque.
