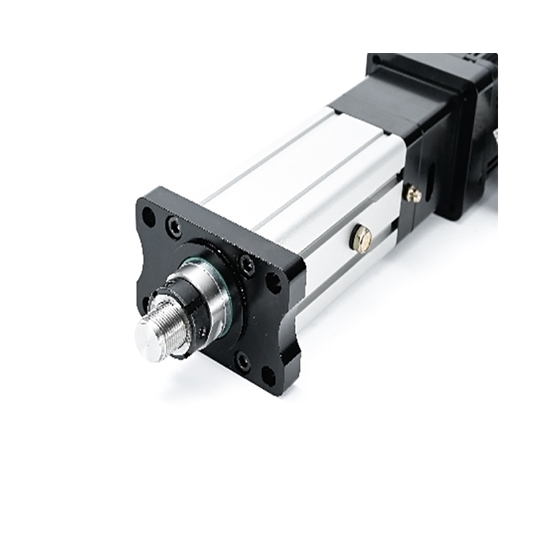

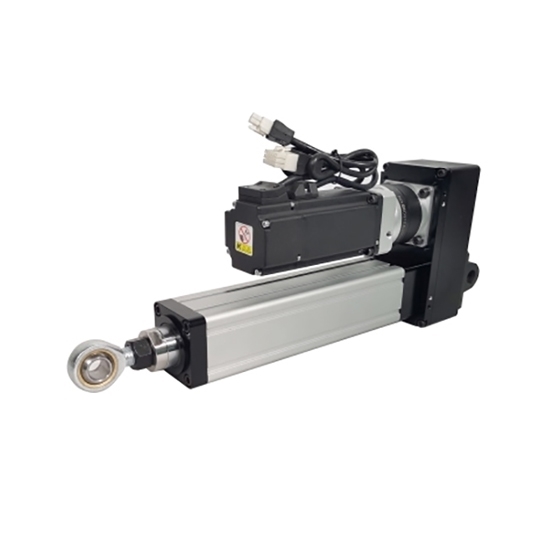

6hp (4.5kW) Linear Servo Motor, 29Nm, 34kN, 1800mm

Free Shipping

6hp (4.5kW) Linear Servo Motor, 29Nm, 34kN, 1800mm

0 reviews • Write a review

from

$9,483.08

Ex Tax: $9,483.08

Stock: In Stock
Model: RDDLZ-SERVO-L4500
Weight: 1.00
SKU: RDDLZ-SERVO-L4500

Available Options

Short Description

Installation Method

Structure Type

Rod End Connection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

6hp linear cylinder with reduction ratio 2:1, lead 10mm, rated linear speed 177.67mm/ s, maximum linear speed up to 288.78mm/ s. It is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

Specification

Model	RDDLZ-EDA110-4500W
Rated power	6hp (4.5KW)
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	2:1
Rated speed	1500 rpm
Max. speed	3000 rpm
Rated torque	29 Nm
Rated thrust	22.96 kN
Rated linear speed	166.67mm/s
Max. thrust	34 kN
Max. linear speed	333.33mm/s
Max. stroke	1800mm
Diameter	40mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	316kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

In-line

Reentrant

Details

Tips: Motion Conversion Structure of Linear Servo Motor.

The actuator cylinde mainly adopts a spiral screw drive mechanism to convert rotary motion into linear motion. Spiral screw drive mainly includes nut screw drive, ball screw drive and planetary roller screw drive. Ordinary nut-screw mechanism is gradually eliminated due to the shortcomings of large transmission friction resistance and low transmission efficiency. At present, the more commonly used are ball screw transmission and planetary roller screw transmission.
Ball screw is one of the most commonly used transmission components of electric cylinders. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force, and it has both high precision, reversibility and high efficiency. specialty. Since many balls roll between the screw shaft of the ball screw pair and the screw nut, the electric cylinder using the ball screw can achieve higher movement efficiency.
