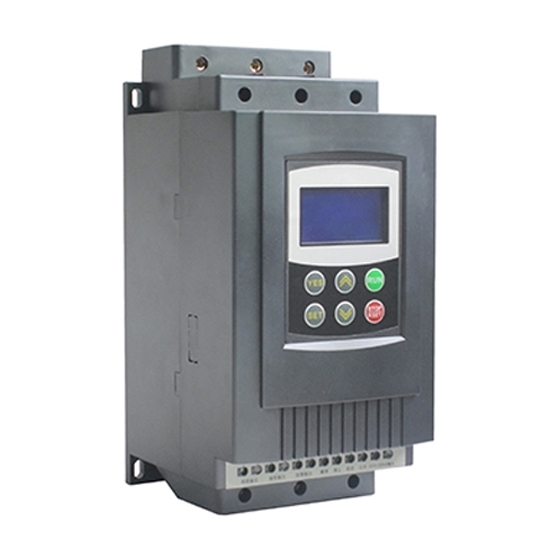

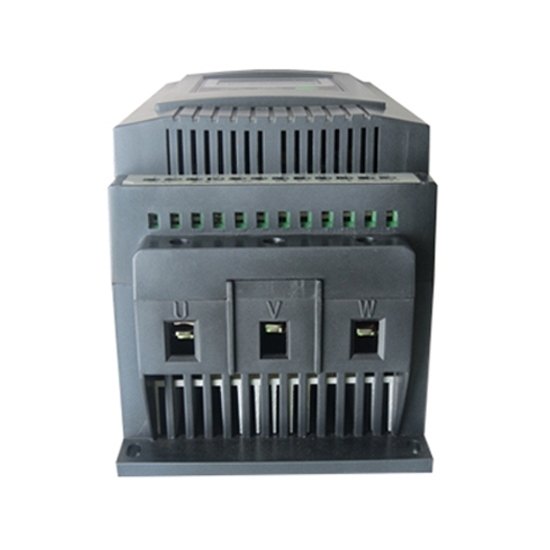

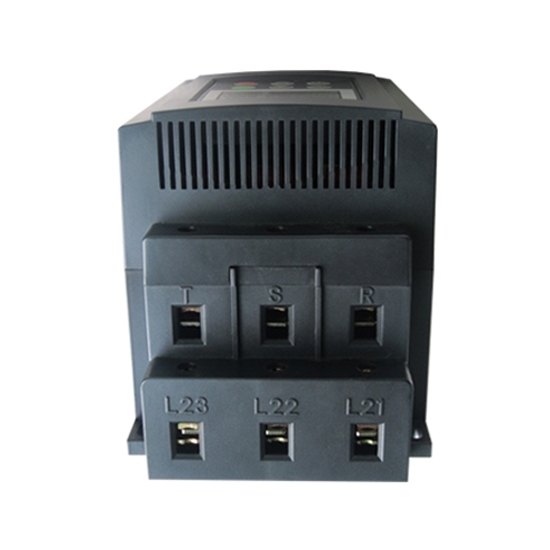

20 Hp (15 KW) Soft Starter, 30 A, 3ph 220v/380v/480v

0 reviews • Write a review

from

$389.21

Ex Tax: $389.21

Stock: In Stock
Model: GS-015
Weight: 1.00
SKU: GS-015

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

20 hp soft starter, 15 kW three phase 220v, 380v, 480v, 690v AC motor starter for selection.

Model			GS2-015 (220v, 240v), GS3-015 (380v, 400v, 415v), GS4-015 (460v, 480v), GS6-015 (575v, 690v).
Capacity			20 hp (15 kw)
Current			30 amps at 380v/480v, 60 amps at 220v, 22 amps at 960v
Weight			5 kgs
Dimension			270146160 mm
Input	Voltage		Three-phase 240v, 380v, 460v, 690v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter protection functions
Soft starter has overload protection, open-phase protection, overheating protection, measurement loop parameters and other functions.

Overload protection: Soft starter introduces a current control loop, so it can trace and detect motor current changes at any time. By increasing the overload current setting and inverse time control mode, it can achieve the overload protection function. When the motor overload, it will turns off the thyristor and send an alarm signal.
Open-phase protection: While working, the soft starter detects changes in three-phase line current at any time, once the break occurs, it will make a reaction of open-phase protection.
Overheat protection: Through the soft starter internal thermal relay to detect the temperature of the thyristor radiator, once the radiator temperature exceeds the allowable value, the soft starter will automatically turns off the thyristor and send an alarm signal.
Measuring loop parameters function: When the motor is working, the detector in the soft starter monitors the running state of the motor all the time, and sends the monitored parameters to the CPU for processing. The CPU will analyze, store and display the monitoring parameters. So the motor soft starter also has the function of measuring loop parameters.
Other functions: Through the combination of electronic circuits, the soft starter can also achieve various interlock protection in the system.
