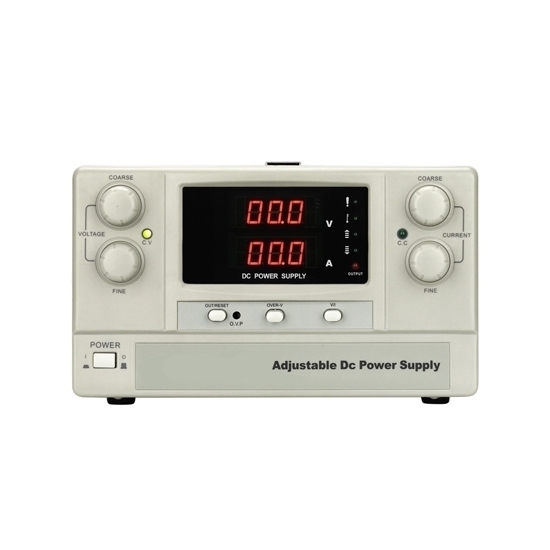

60A 30V 1800W Variable DC Power Supply

0 reviews • Write a review

from

$699.39

Ex Tax: $699.39

Stock: In Stock
Model: RDDLZ-VDCPS3060K
Weight: 1.00
SKU: RDDLZ-VDCPS3060K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

60 amp 30 volt variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK3060K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-60A
Output Power	1800W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

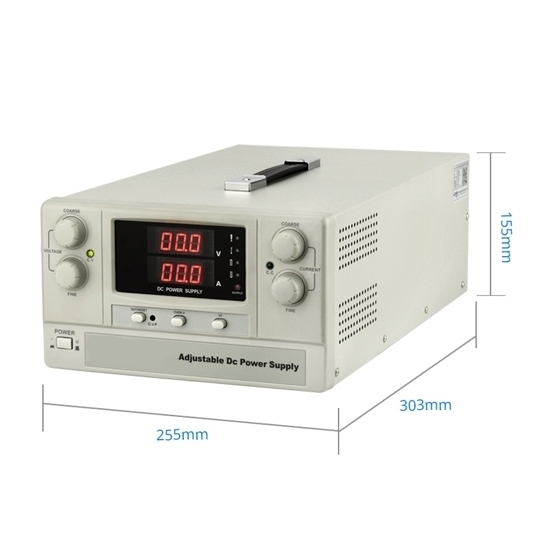

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

Tips: Are variable DC power supplies safe to use?

Variable DC power supplies are generally safe to use when operated within their specified voltage and current limits. These supplies allow users to adjust the output voltage and current for various electronic applications. To ensure safety, it's crucial to follow the manufacturer's guidelines and ratings, avoiding overloading the unit. Many variable DC power supplies incorporate built-in protection features, such as short-circuit protection and overcurrent protection, adding an extra layer of safety. Users should be aware of potential electrical hazards, follow proper handling procedures, and use appropriate protective gear when necessary. Regular maintenance and periodic checks of the equipment contribute to a safe working environment. In summary, when used responsibly and in accordance with guidelines, variable DC power supplies are safe tools for electronics experimentation and testing.
