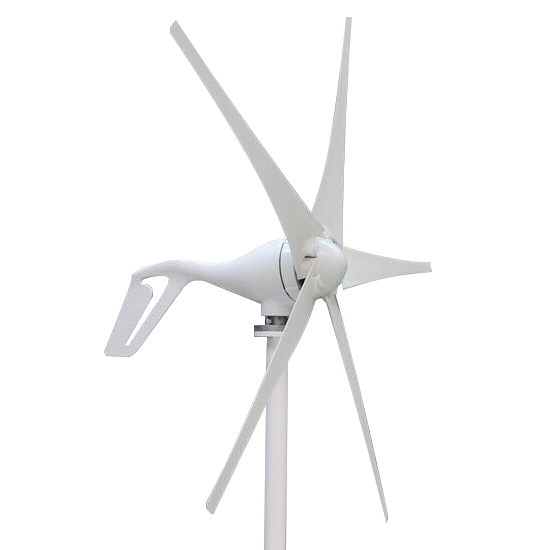

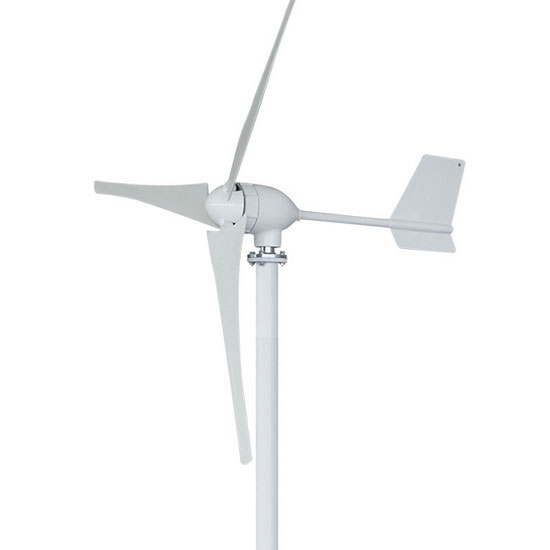

600W Horizontal Axis Wind Turbine, 12V/24V/48V

0 reviews • Write a review

from

$793.08

Ex Tax: $793.08

Stock: In Stock
Model: RDDLZ-WT-600M4
Weight: 1.00
SKU: RDDLZ-WT-600M4

Available Options

Short Description

Rated Voltage

With Matched Controller

Wind Turbine Blades

Installation Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High cost performance horizontal axis wind turbine rated power 600 watt, wind turbine blades materials is nylon fiber and size 1.85 meter, easy to install, safe to use, it is a good choice of home wind turbines.

Specification:

Model	RDDLZ-WT-600M4
Matched Controller Model	RDDLZ-WTCMPPT-600
Rated Power	600W
Maximum Power	650W
Rated Voltage	12V/24V/48V
Start Up Wind Speed	2.5 m/s
Rated Wind Speed	11 m/s
Survival Wind Speed	45 m/s
Wheel Diameter	1.85m
Blase Number	Nylon Fiber
Generator	Three Phase Permanent Magnet AC Generator
Magnetic Steel	NdFeB
Generator Case	Die-Casting Aluminum
Controller System	Electromahnet
Speed Regulation	Automatically Adjust Windard
Installation Flange	DN40
Working Temperature	-40°C~80°C
Gross Weight	30kg
Service Life	15 years
Warranty	18 months
Top Net Weight	18kg
Package Dimensions	1200395300mm

600W Wind Turbine Power Curve

Features
1. The starting speed is slow, the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

600W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Power Curve

Tips: Homemade wind turbine

The first is the necessary materials: conductor, permanent magnet, rotor shaft, bearing, is the necessary materials.

Simple recipe:
1. Rotor. Permanent magnet is fixed on the rotor shaft and its magnetic pole pairs are symmetrical and round. Generally, the strength of magnetic field, rotor speed and the number of magnetic pole pairs affect the voltage.

2. The stator, the wire winding on the stator core, single direction if use similar market motor winding method is different, now is the most simple, for example, the diameter of the wire will affect the power current, namely the power of the generator voltage winding length and number of turns, the other set of rotor material can require the use of magnetic materials, the most common is iron, but the easiest way to get best use iron overlay, stator spacing influence permeability performance, namely generator voltage and power will have influence, should not be more than 0.5 mm, this basic form a generator.

3. By using power to rotate the rotor (the speed of rotation depends on the voltage), ac voltage can be obtained at both ends of the wire.
