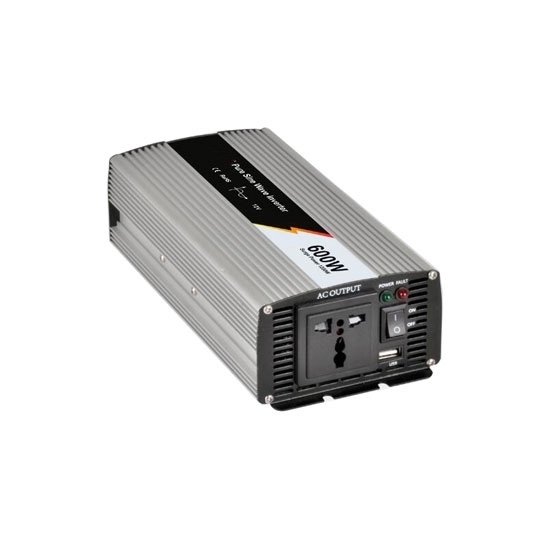

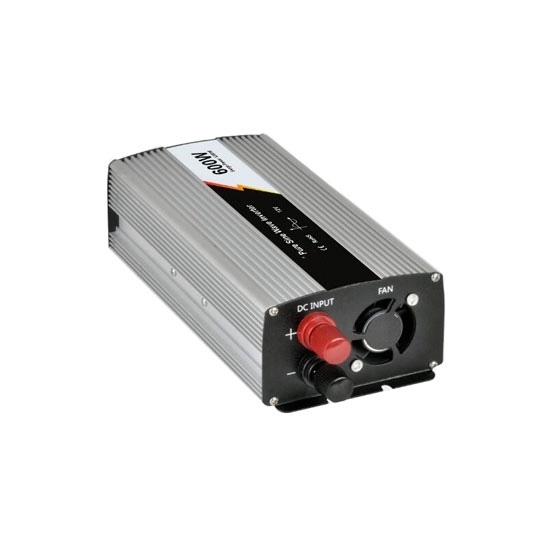

600 Watt Pure Sine Wave Power Inverter, 12V DC To 110V AC

0 reviews • Write a review

from

$160.32

Ex Tax: $160.32

Stock: In Stock
Model: RDDLZ-PI-600W
Weight: 1.00
SKU: RDDLZ-PI-600W

Available Options

Short Description

Remote Control

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Light and compact 600W pure sine wave power inverter for sale, converting DC to AC power, optional DC input 12V/24V/48V and AC output 110V/120V/220V/230V/240V. Low price, high efficiency and stable performance, ideal for home & car.

Note: 600W pure sine wave inverter can barely power a small refrigerator, but there is a certain risk. Recommend to buy an inverter with higher power.

Specification

Model	RDDLZ-PSWI-600
Output Power	600 Watt
Peak Power	1200 Watt
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input Voltage*	DC 12V	DC 24V	DC 48V	DC 12V	DC 24V	DC 48V
Input DC Voltage Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Output Voltage*	100V AC or 110V AC or 120V AC ±5%			220V AC or 230V AC or 240V AC ±5%
No-load Current (less-than)	0.6A	0.4A	0.3A	0.6A	0.4A	0.3A
Output Frequency*	50Hz±0.5Hz or 60Hz±0.5Hz
Output Wave	Pure sine wave
Waveform Distortion	THD＜3% (linear load)
USB Port	5V 1A
Outlets Type	Universal outlet
Max. Working Efficiency	90%
Low Voltage Alarm	10.5V±0.5V	21V±0.5V	42V±1V	10.5V±0.5V	21V±0.5V	42V±1V
Low Voltage Shutdown	10V±0.5V	20V±0.5V	40V±1.5V	10V±0.5V	20V±0.5V	40V±1.5V
Low Voltage Recovery	13V±0.5V	24V±0.5V	48V±1V	13V±0.5V	24V±0.5V	48V±1V
Over Voltage Shutdown	15.5V±0.5V	31V±0.5V	61V±1V	15.5V±0.5V	31V±0.5V	61V±1V
Over Voltage Recovery	14.8±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection	Low voltage, Over voltage, Over load, Over temperature, Short circuit, Input polarity reverse connection
Cooling Way	Intelligent air cooling
Remote Control*	Wired control (2m) or Wireless control (30m)
Operating Temperature	﹣10℃~ +50℃
Storage Temperature	﹣30℃~ +70℃
Humidity	≤90%, non-condensing
Dimensions (WHD)	25010663mm
Package Size (WHD)	29516080mm
Net./Gross Weight	1kg/1.3kg
Certificate	CE, RoHS
Warranty	12 months

Features

600 Watt continuous power and 1200 Watt peak power
Pure sine wave inverter, capable of producing clean & stable electricity
Soft-start technology
USB charging port for powering your phone, laptop, etc.
Aluminum alloy shell with good heat dissipation
Multiple protections against under and over voltage, over load, over temperature, short circuit and input polarity reverse connection
ON/OFF switch design, easy to use
Intelligent cooling fan, long working life

Details

Wiring Diagram

Note: The wiring of 48V inverter is similar to the 24V inverter, and the batteries are connected in series.

Protection Functions & Applications

Reverse Polarity Protection: Auto protection when input positive and negative polarities are reversely connected – The fuse blown out.
Short Circuit Protection: Automatically self-protect when short circuit occurs – Red LED light ON.
Low Voltage Protection: Automatically protect when in low voltage – Alarm first, the voltage continuously reduces, the red light is on and the inverter shuts down.
Over Voltage Protection: Automatically protect when in high voltage – Red LED light is on, and the inverter automatically shuts down.
Over Temperature Protection: Automatically self-protect when at high temperature – Alarm first, the temperature continuously rises, the red light is on and the inverter shuts down.
Overload Protection: Automatic self-protection when there is overload – Red LED light is on and the inverter automatically shuts down.

Tips: Car Inverters Applications

Inverters are used to convert DC power (batteries) into AC power, and it consists of an inverter bridge, control logic, and a filter circuit. It is widely used in air conditioner, home theater, electric grinding wheel, electric tools, sewing machines, DVD, VCD, computers, TV, washing machines, range hoods, refrigerators, video recorders, massagers, fans, lighting and so on.

Besides, when you drive to work or travel, the car inverter works which can be connected to the batteries or car cigarette lighter to energize the electrical appliances. The powers of car inverter output via the cigarette lighter have 20W, 40W, 80W, 120W, and 150W. For the larger power like 300W, 500W, 600W etc., the power inverters need to be connected to the battery via the cable. Thus, the home appliances can work as they are connected to the output side of the power inverter, such as cellphones, laptops, digital cameras, lights, electric razors, CD players, game consoles, PDAs, power tools, car refrigerators, and various travel, camping, medical emergency appliances.
