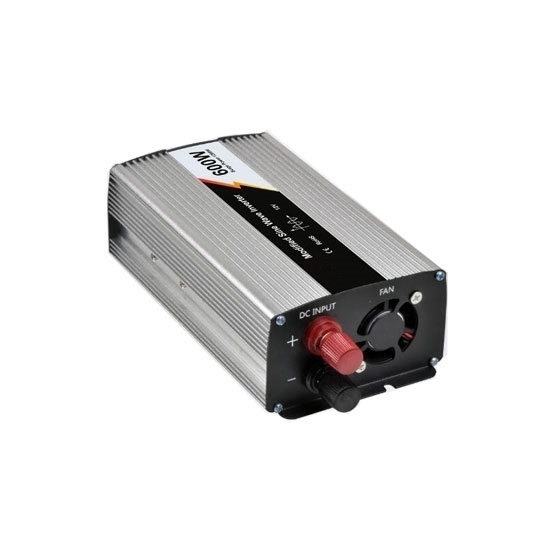

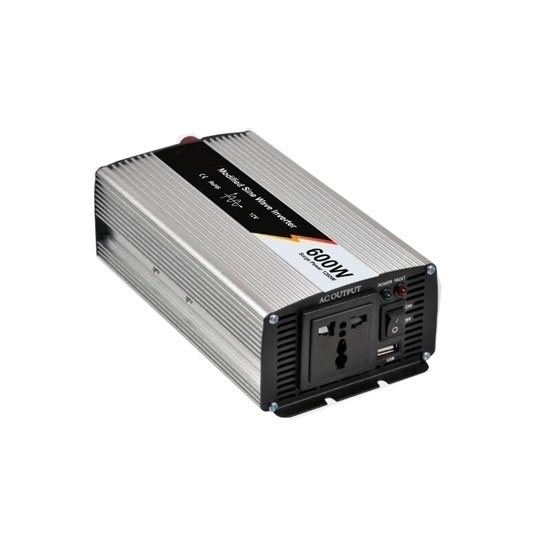

600 Watt Car Power Inverter, 24V DC To 220V AC

0 reviews • Write a review

from

$103.31

Ex Tax: $103.31

Stock: In Stock
Model: RDDLZ-PI-M600W
Weight: 1.00
SKU: RDDLZ-PI-M600W

Available Options

Short Description

Input DC Voltage (V)

Input Battery Type

Output AC Voltage (V)

Output Frequency

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

600 Watt continuous and 1200 Watt peak power
AC household power outlet (Optional 110/120V/220V/240V AC) - power AC electronic devices in your vehicle
USB port – charge your cell phones, laptops, tablets and other USB compatible devices
Multiple safety protection - overvoltage, undervoltage, overload, over temperature, short circuit protection (reverse polarity connect)
Compact design, durable housing and high efficiency - ideal for use on road trips, vacations, work trips, camping and other outdoor activities where AC power is needed

Note: Refrigerators or devices similar to refrigerator loads need to choose an inverter with a power of more than 10 times.

600W Car Power Inverter Specification

Model	RDDLZ-M600W
Rated power	600W
Peak power	1200W
Phase	1- Phase (L, N, G), Do Not provide split phase configuration (L1, L2 + N, G)
Input voltage	DC12V	DC24V	DC12V	DC24V
Output voltage	100VAC or 110VAC or 120VAC±5%		220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.1A	0.3A	0.1A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max. efficiency	85%
Input voltage range	10-15.5V	20-31V	10-15.5V	20-31V
Low voltage alarm	10.5±0.5V	21±0.5V	10.5±0.5V	21±0.5V
Low voltage protection	10±0.5V	20±0.5V	10±0.5V	20±0.5V
Over voltage protection	15.5±0.5V	31±0.5V	15.5±0.5V	31±0.5V
Low voltage recover	12.3±0.5V	24±0.5V	12.3±0.5V	24±0.5V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	14.8V±0.5V	29.5V±0.5V
Protection function	Low voltage	Alarm at first; voltage continuously reduces, LED Red light on & shut down.
	Over voltage	LED Red light on, shut down
	Over load	LED Red light on, shut down
	Over temperature	Alarm at first; temperature continuously rises, LED Red light on & shut down.
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature	-10℃ ~ +50℃
Storage temperature	-30℃ ~ +70℃
Dimension	221x106x63mm
Net./gross weight	755g/1020g
Warranty	1 year
Cooling method	Intelligent cooling fan

Details

12/24V DC to AC Power Inverter Wiring Diagram

Tips: Resistive load vs Inductive load

1. Resistive load
The resistive load means that, the load appears resistive when there is no phase difference compared to the power supply. In a nutshell, a purely resistive load that works only with resistive components is called a resistive load, such as mobile phones, computers, televisions, bulbs, electric fans, etc. Generally, the modified sine wave power inverter can be used for powering this kind of load.

2. Inductive load
The inductive load refers to high power electrical products made by the principle of electromagnetic induction, such as motors, compressors, relays, induction cookers, refrigerators, air conditioners, pumps, etc. The instantaneous power of such devices is far more than the rated power (about 3-7 times). The pure sine wave inverter can be used for such sensitive load.
