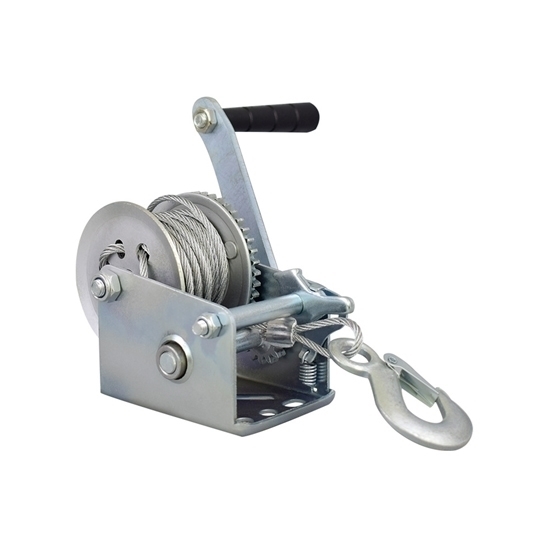

RDDLZ portable manual crank winch is used for car trailer, camper trailer, boat trailer, utility trailer, off road, vehicle recovery, etc., which is ideal for pulling, lifting and lowering items.

Specification

• Model: RDDLZ-BQC600
• Working Load: 600 lbs (0.3 ton)
• Lifting Tension: 510 lbs (0.255 ton)
• Breaking Strength: 830 lbs (0.4 ton)
• Material: Rolled Steel
• Gear Ratio: 3.2:1
• Cable (Dia x L): Ø4mm x 8m
• Dimension: 150mm (L) x 85mm (W) x 120mm (H)
• Weight: 2.4kg

Note*: Never exceed working load limit.

Details

Tips: Hand winch applications

Hand winches are versatile tools that can be used in various applications. Here are some common applications where hand winches are frequently utilized:

• Vehicle Recovery: Hand winches are often employed for recovering stuck or immobilized vehicles. They can be attached to the chassis or frame of the vehicle, allowing users to manually pull or lift it out of a difficult situation, such as mud, sand, or a ditch.
• Boating and Watercraft: Hand winches are widely used in boating and watercraft applications. They are employed for tasks like boat launching and retrieval, securing vessels to trailers or docks, and adjusting tension on sails and rigging.
• Trailers and Towing: Hand winches are commonly utilized for loading and unloading cargo on trailers, as well as for securing loads during transportation. They can be mounted on trailers, truck beds, or other surfaces to facilitate the movement and positioning of heavy objects.
• Construction and Rigging: Hand winches find applications in the construction industry for tasks such as lifting and positioning equipment, materials, or structures. They are also used for tensioning cables, ropes, and wires in rigging applications.
• Recreational and Outdoor Activities: Hand winches are popular among outdoor enthusiasts and adventurers. They can be employed for tasks like hoisting gear or equipment to elevated positions, setting up temporary structures, or creating makeshift ziplines or rope bridges.
• Agriculture and Farming: Hand winches can assist in agricultural activities such as pulling heavy objects, tightening fences or wires, or raising and lowering equipment like gates, hoppers, or feeders.
• Home and DIY Projects: Hand winches are useful tools for various home and DIY projects. They can be utilized for lifting heavy objects, tensioning structures, or creating mechanical advantage in tasks that require controlled pulling or lifting.
