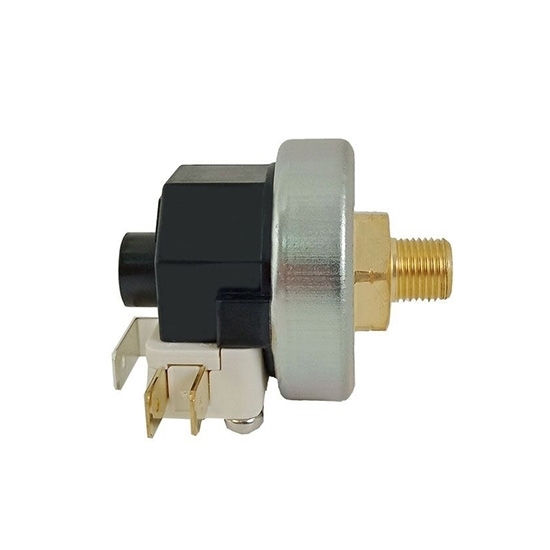

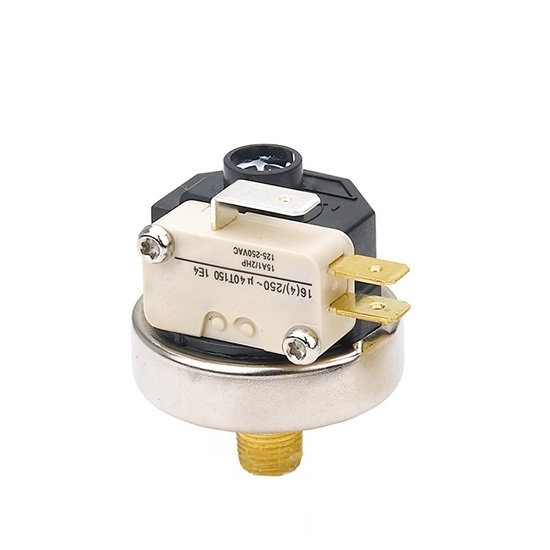

Steam Pressure Switch, 0.2 To 9.0 Bar

0 reviews • Write a review

from

$61.46

Ex Tax: $61.46

Stock: In Stock
Model: RDDLZ-SPS-LF25
Weight: 1.00
SKU: RDDLZ-SPS-LF25

Available Options

Short Description

Connection

Pressure Range

Electrical Parameters

Temperature Limit

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Steam pressure switches are designed to control pressure and have a larger current capacity. It uses a high-quality micro switch, and the switching action is facilitated by a diaphragm. The switch is factory-set but can be adjusted on site. It is available in SPST or SPDT contact form and switches dead zone (also known as mechanical differential or hysteresis). It is widely used in steam cleaners, steam irons and other pressure control systems.

Specification

Model	RDDLZ-LF25
Medium	Non-hazardous gas, liquid or steam
Pressure range	0.2-0.6bar	0.5-1.0bar	1.0-2.5bar	2.0-4bar	3.0-7.0bar	5.0-9.0bar
Proof pressure	3bar	3bar	10bar	10bar	10bar	10bar
Operating temperature limit	Maximum 85℃/125℃
Contact method	SPST or SPDT
Electrical parameters	SPST or SPDT/Normal Close: 16 (4)-250VAC (other ratings are available if necessary)
Terminals	6.3 or 4.8mm quick-connect terminals
Connection	1/8 NPT, 1/4 NPT (other connection is optional)

Dimension (mm)

Details

Tips: What is a steam pressure switch?

A steam pressure switch is a crucial device used to monitor and regulate the pressure within steam-powered systems, such as steam cleaners, steam irons, and industrial boilers. It operates by sensing the steam pressure and activating or deactivating the system when the pressure reaches a pre-set threshold, ensuring that the system operates safely and efficiently. By maintaining the pressure within the desired range, the switch helps prevent overpressure or underpressure situations, which could damage the equipment or compromise performance. Widely used in residential and industrial applications, the steam pressure switch ensures stable and safe operation of steam-based equipment.
