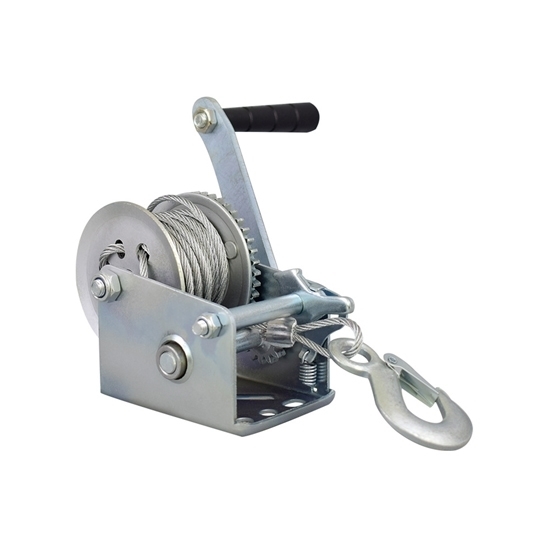

RDDLZ hand crank winch is used for car trailer, camper trailer, boat trailer, utility trailer, off road, vehicle recovery, etc., which is ideal for pulling, lifting and lowering items.

Specification

• Model: RDDLZ-BQC1000
• Working Load: 1000 lbs (0.5 ton)
• Lifting Tension: 640 lbs (0.32 ton)
• Breaking Strength: 1500 lbs (0.75 ton)
• Material: Rolled Steel
• Gear Ratio: 3.6:1
• Cable (Dia x L): Ø5mm x 8m
• Dimension: 183mm (L) x 90mm (W) x 151mm (H)
• Weight: 3.2kg

Note*: Never exceed working load limit.

Details

Tips: What is a hand winch?

A hand winch is a mechanical device used to lift or pull heavy loads with the help of a manual effort. It consists of a drum or spool, a handle, and gears or a ratchet mechanism. The drum is usually cylindrical and has a cable or rope wound around it. The handle is used to turn the drum, causing the cable or rope to be wound or unwound.

Hand winches are commonly used in various applications where a portable and compact lifting or pulling solution is needed. They are often used in situations where power sources are limited or unavailable, such as in outdoor activities, construction sites, or during vehicle recovery operations. Hand winches are designed to provide mechanical advantage, allowing users to exert a smaller amount of force to move heavy objects.

To use a hand crank winch, the cable or rope is typically attached to the load that needs to be lifted or pulled. By turning the handle, the drum rotates, which either winds the cable or rope onto the drum (raising the load) or allows it to unwind (lowering the load). The gearing or ratchet mechanism helps prevent the load from sliding back when the handle is released, ensuring safety and stability during operations.

Hand winches come in various sizes and capacities, with different lifting or pulling capacities to suit different needs. They are generally considered a reliable and versatile tool for a wide range of applications that require manual lifting or pulling of heavy objects.
