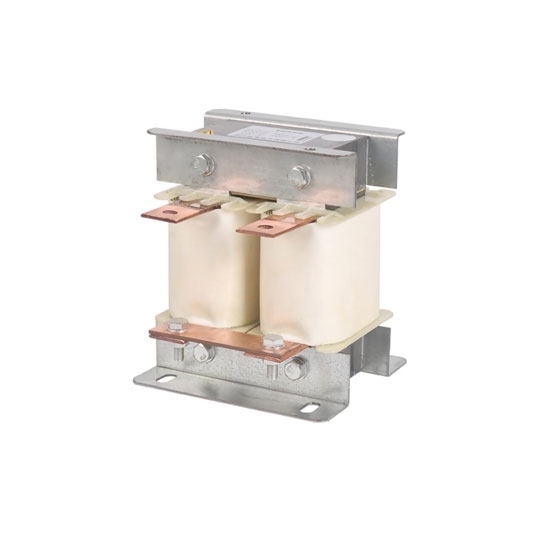

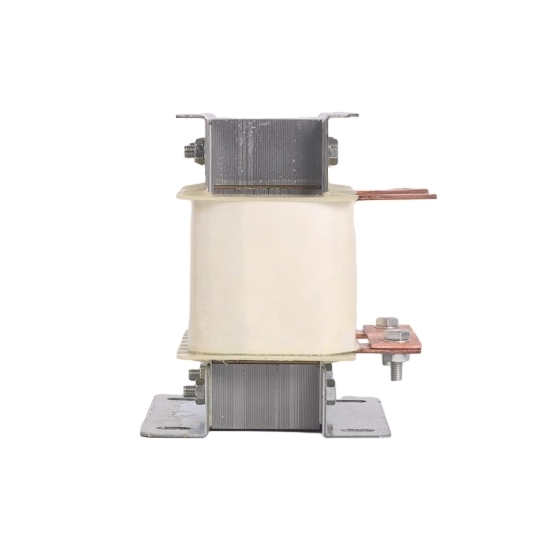

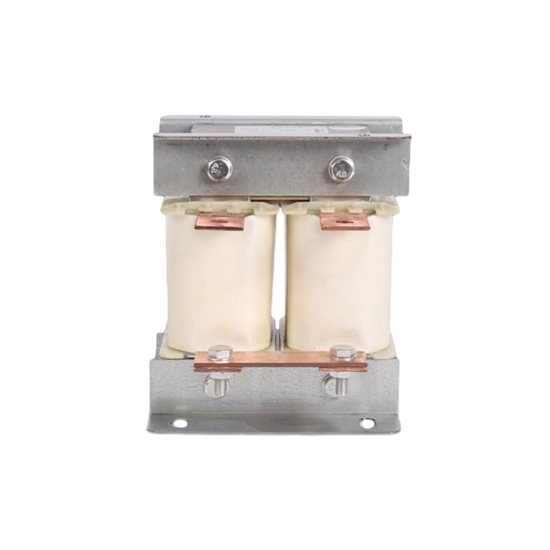

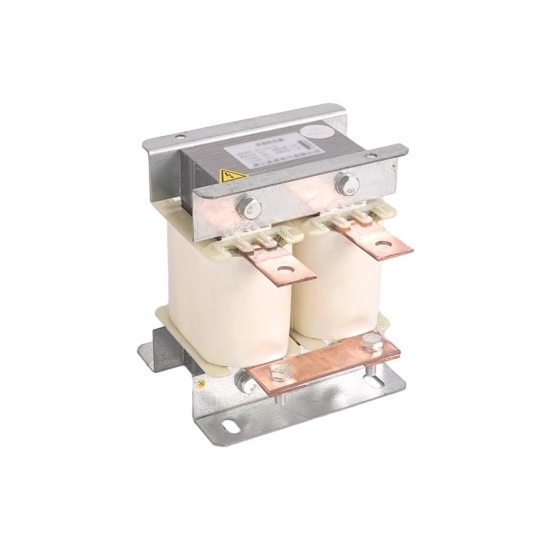

60 Hp (45 KW) DC Reactor, Single Phase

60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
60 Hp (45 KW) DC Reactor, Single Phase
0 reviews • Write a review
from
$395.07
Ex Tax: $395.07
  • Stock: In Stock
  • Model: RDDLZ-DCR-60
  • Weight: 1.00
  • SKU: RDDLZ-DCR-60

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost DC line reactor for vfd and inverter, single phase, power 60 hp (45 kW), high protection level, safe and reliable to use.

Specification:

ModelRDDLZ-DCL-125
Phase1 Phase
Power Adapter45 kW (60 hp)
Recommended VFD ModelSKU: GK3000-4T0450G (2 hp three phase VFD)
VFD Voltage Adapter220V- 1200V (Contact us for other voltages)
Rated Current125A
Inductance0.265mH
Insulation GradeF.H
Dimension165*150*185mm (L*W*H)
Mounting Dimension120*80mm
Electric StrengthIron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistanceiron core-winding 1000VDC, Insulation resistance
≥100MV
Noise of ReactorLess than 35dB (measured from 1 meter away in horizon from reactor)
Degree of ProtectionIP00
Degree of Insulation> Class F
Weight17kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

60 hp DC Line Reactor Dimension (unit: mm)
Details


Tips: When does the inverter need to add a DC smoothing reactor?

1. When the inverter power is ≥37KW.

2.When the power factor of the frequency conversion system is low.

3.When the rectification link of the inverter is unstable.

4. The rectification harmonics of the inverter are too high, which affects the normal operation of the sensitive electrical equipment around the inverter.
