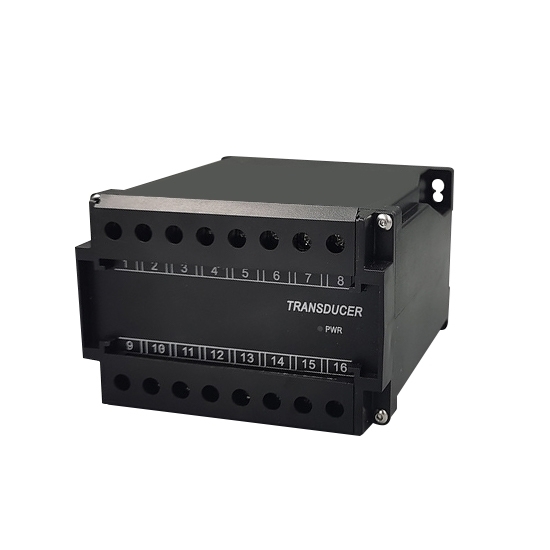

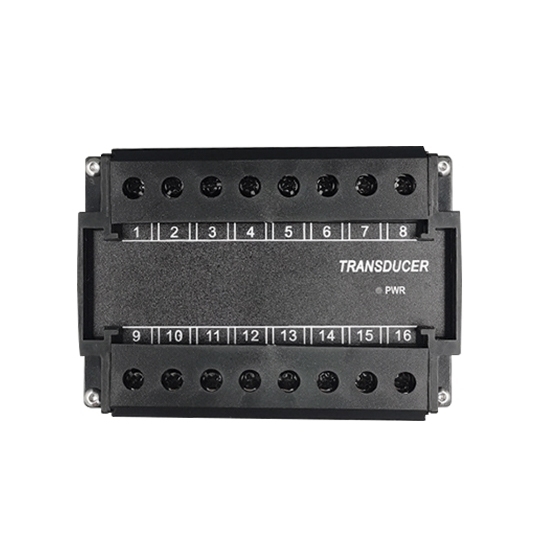

Reactive Power Transducer, 3 Phase 3 Wire/ 3 Phase 4 Wire

0 reviews • Write a review

from

$206.31

Ex Tax: $206.31

Stock: In Stock
Model: RDDLZ-PT-Q3
Weight: 1.00
SKU: RDDLZ-PT-Q3

Available Options

Output Signal

Input Signal

Accuracy

Output Channel

Transducer Power

Measurement

Standard Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The input, output, power supply and shell of the reactive power transducer are isolated from each other, which can prevent high-voltage signals from harming equipment and personnel. The compressive strength of the reactive power sensor is AC2Kvrms/min, and the insulation resistance is greater than 100 MΩ at DC 500V. It uses a 35mm standard rail or is fixed on a cabinet. The reactive power transducer has good quality and is easy to install.

Specification

Model	RDDLZ-PT-HDB-Q3
Measurement	3phase 3wire or 3phase 4wire (optional)
Input	AC Voltage: 57.7V, 100V, 220V, 380V, 450V, 600V, customization AC Current: 1A, 5A, 10A, 20A, customization (optional)
Standard Range	0~173.2var, 0~866var, 0~3000var, 0~±173.2var, 0~±866var (optional)
Input Load	CT of voltage transformer: ≤0.1VA CT of current transformer: ≤0.2VA
Allow Overload	Voltage × 1.2 times the nominal value continuous Current × 1.2 times the nominal value continuous Current × 10 times the nominal value for 10s
Accuracy	0.2, 0.5 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (non-condensing state)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (non-condensing state)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 450 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimensions	120（L）× 110（W）× 75（H）mm
Installation Method	35mm standard rail or fixed on the cabinet

Dimension (Unit: mm)

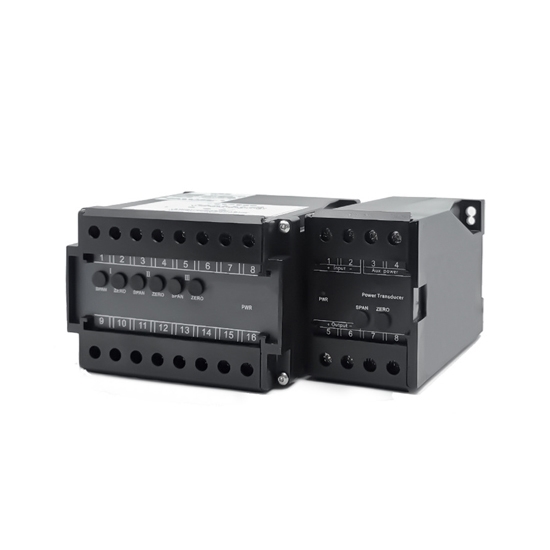

Calibration Fine Tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

Tips: Active Power Transducers vs. Reactive Power Transducers

Measurement Purpose: Active power transducers measure active power (W/kW) that performs actual work. Reactive power transducers measure reactive power (VAR/kVAR) that affects power quality but does no useful work.
Application Focus: Choose active power transducers for energy monitoring, efficiency analysis, and load management. Use reactive power sensing for power factor correction and reactive power compensation.
Load Type: Active power dominates in resistive loads (heaters, incandescent lamps). Reactive power is present in inductive/capacitive loads (motors, transformers, fluorescent lamps).
Power Factor Impact: The higher the active power, the higher the efficiency. Excessive reactive power results in lower power factor, resulting in wasted energy and higher costs.
