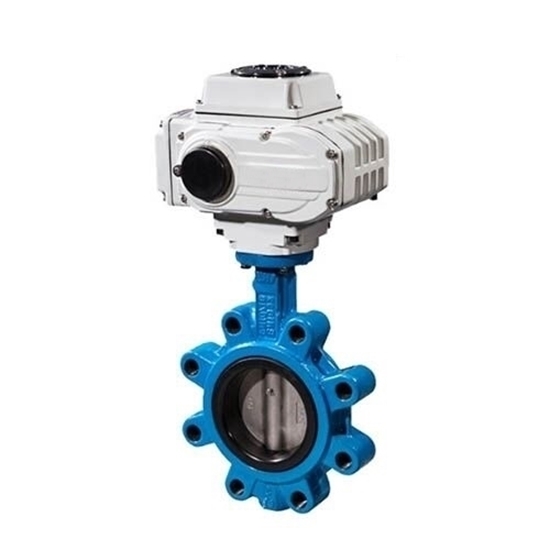

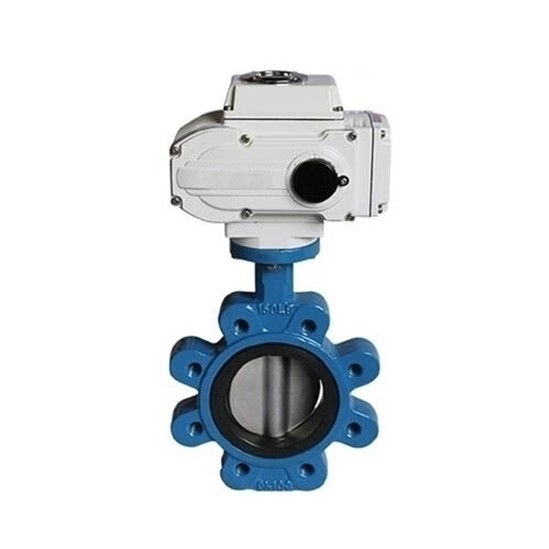

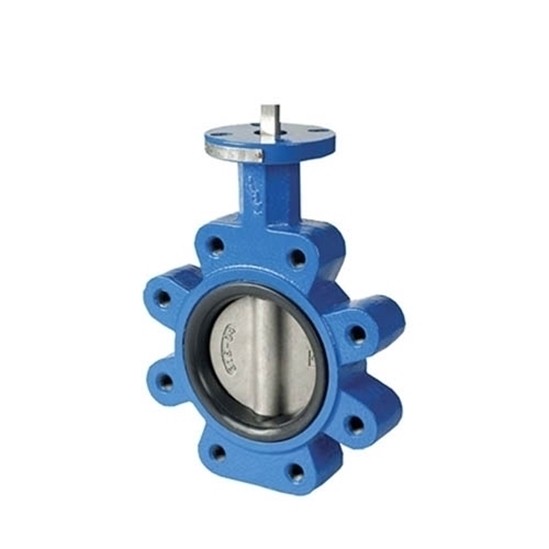

6" Electric Lug Type Butterfly Valve

0 reviews • Write a review

from

$1,515.15

Ex Tax: $1,515.15

Stock: In Stock
Model: RDDLZ-HK60-DMS150-16
Weight: 1.00
SKU: RDDLZ-HK60-DMS150-16

Available Options

Power Supply

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Electric butterfly valve with port size 6 inch (DN150) stainless steel material disc and stem, work at temperature -30°C~60°C. Control air, water, steam, gas and so on.

Electuator Specification

Mode	RDDLZ-HK60-DMS150-16
Protection Class	IP65
Ambient Temp.	-30°C~60°C
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage Optional	AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Optional	6" (DN150 150mm)
05 Actuator Control Circuit	A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
Voltage	AC 220V	DC 24V	AC 380V
Torque Output	160Nm	170Nm	200Nm
90° Cycle Time	15S/30S/60S	11S	27S
Working Current	0.40A	0.40A	0.27A
Drive Motor	80W	9.6W	77W

Body and Valve Specification

Body		Valve components
Corresponding Valve Port Size	6" (DN150,150mm)	Seating Material	NBR, EPDM, VITON (Default PTFE)
Body Material	Stainless Steel	Disc Material	Stainless Steel
End Connection	Wafer Flange	Stem Material	Stainless Steel
Operating Pressure	< 1.6MPa	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Structure	Midline Structure/ A-type	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam

Butterfly Construction

Dimension	Inch	D	D1	D2	L	H	n-φd
DN150	6"	157 mm	206 mm	240 mm	54 mm	341 mm	8-M20 mm

Actuator Dimension (mm)

Details

Features

Accurate wafer type butterfly valve turbo-worm structure can output large torque with high efficiency and little noise (Max.50 decibel).
Long service life. Self-lock function can stop reverse rotation. Drive part is stable and reliable without additional lubrication.
Wafer butterfly valve captive bolts won't fall off when cover is disassembled.
Star square hole is easy for square valve stem linear or 45° rotation application.
Both vertical and horizontal assemble are available.
Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and connection terminal can meet requirement of other optional functions.
Wafer valve with high sealing performance, standard protection class is IP67.
Voltage optional: AC 110V, AC 220V, AC 380V, DC 24V, AC 24V.
Lug type butterfly valves possess compact structure, portable, easy to maintain.
Optional Function: over torque protectors, dehumidify heater, stainless steel coupling & yoke.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

Tips: How to install lug type butterfly valve?

The valve is pre-assembled between the two flanges, note the neatly arranged bolt holes.
Four pairs of bolts and nuts are gently inserted into the flange holes, and the nuts are tightened a little to correct the flatness of the flange surface.
The flange is fixed by spot welding to the pipeline, then the valve is removed. The flange is fully welded and fixed to the pipe.
Allow to cool before welding to install the valve. In order to ensure that there is enough space in the valve flange to prevent the valve from being damaged, and to ensure that the valve plate has a certain degree of opening.
