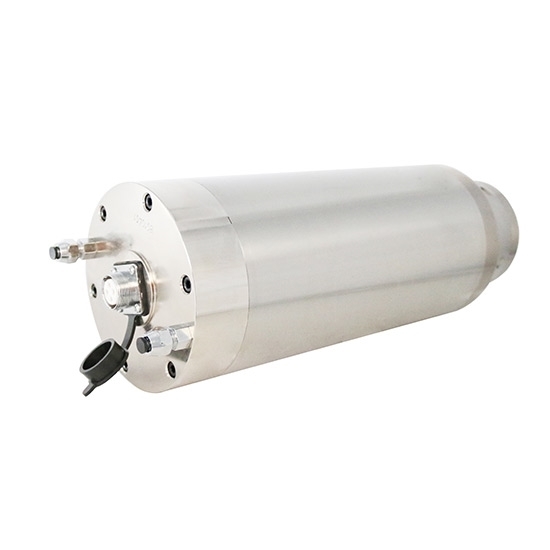

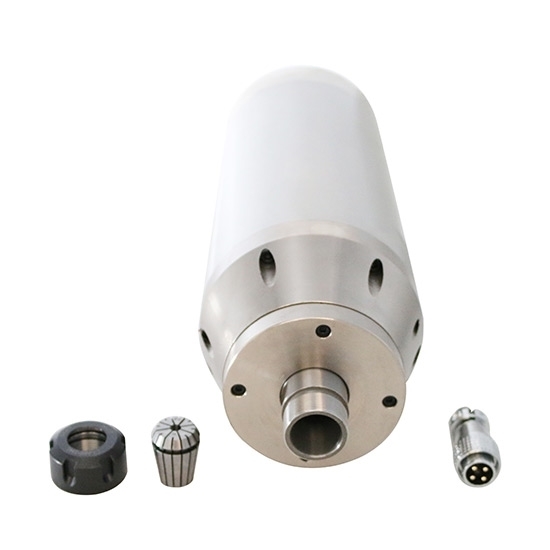

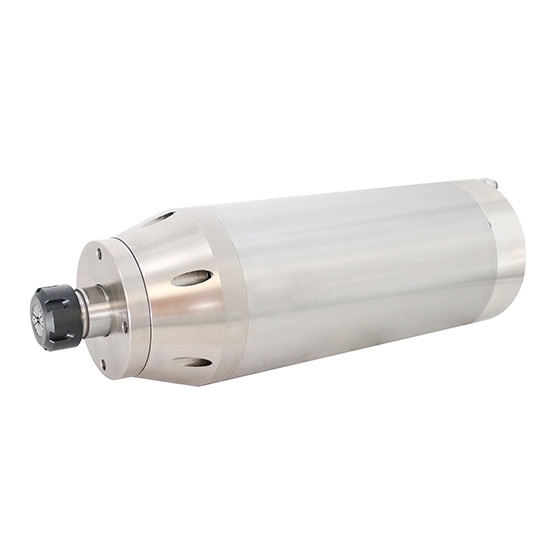

6 kW water cooled CNC spindle motor for sale at cheap price, 24000 rpm speed, 3.18 Nm torque, 400Hz frequency, 3 phase 220V/380V AC operating voltage, ER25 (φ3.175 mm - φ16 mm) collet.

Feature

• Spindle motor with superior durability ER25 collet ensures smooth running.
• Fast response, strong overload capacity, low noise and high mechanical precision.
• High-quality 4 pcs bearings (7007Cx2 + 7005Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors is designed primarily for use with variable frequency drives or engraving machines, as well as CNC routers. It is ideal for high-speed profiling, drilling, cutting, engraving, and groove milling across a variety of materials, including wood, metal, plastics, foam, and rubber.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

Tips: High Speed Spindle Motor Internal Structure

1. The main rotating body of the high-speed spindle motor is the shaft. Manufacturing accuracy directly affects the final accuracy of the spindle motor. The finished product has high requirements for the dimensional accuracy of the rotating shaft. When the rotating shaft is running at high speed, the eccentric mass causes vibration, which seriously affects its dynamic performance. Therefore, strict dynamic balance testing of the rotating shaft is required. The parts installed on the shaft should also be tested for dynamic balance along with the shaft.
2. The core supporting component of the high-speed spindle motor is a high-speed precision bearing. Because the higher speed of the motor spindle depends on the function, size, arrangement and lubrication method of the bearing. Therefore, this kind of bearing needs to have the advantages of good high-speed performance, high dynamic load-carrying capacity, good lubrication performance, and low heat generation.
3. Whether the high-speed motor spindle is in good condition is also greatly affected by the lubrication system. The typical lubrication method is to use oil mist lubrication or air-oil mixture lubrication. The former is mainly to atomize the lubricating oil to lubricate the bearing, and the lubricating oil cannot be recycled, which causes serious air pollution. The latter is to directly blow the lubricating oil into the bearing with high-pressure air, which not only lubricates but also plays a role in heat dissipation.
