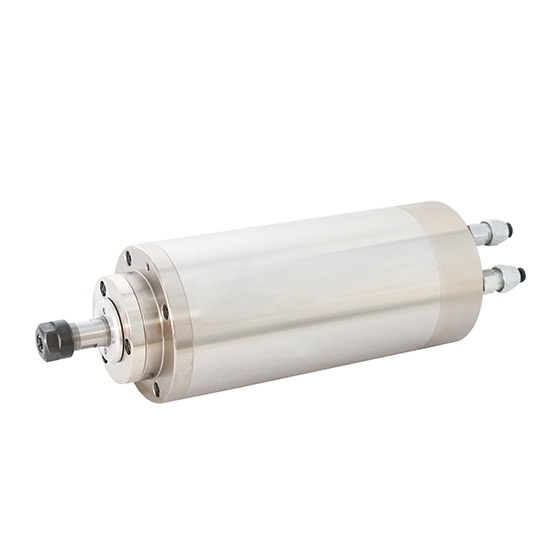

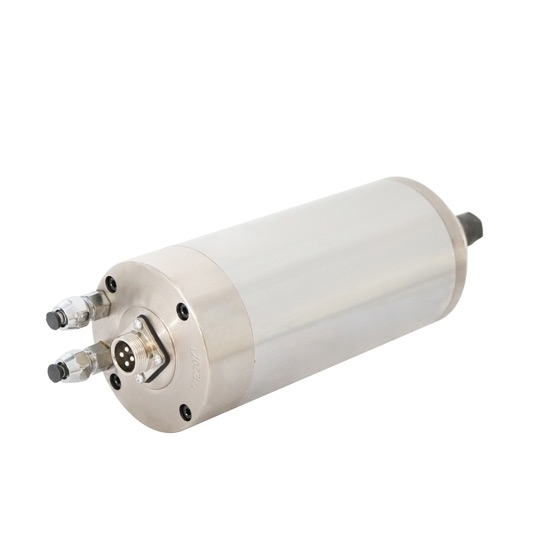

2.2 kW water-cooled CNC spindle motor for sale at low price, 24000 rpm speed, 0.85 Nm torque, 400Hz frequency, 3 phase 220V/380V AC operating voltage, ER20 (φ3.175 mm - φ13 mm) collet.

Feature

• Spindle motor with superior durability ER20 collet ensures smooth running.
• Fast response, strong overload capacity, low noise, and high mechanical precision.
• High-quality 3 pcs bearings (7005Cx2 + 7002Cx1), runout off less than 0.01mm, tapered bore less than 0.005mm.
• P4 grade ceramic ball bearings are used as spindle bearings, which improves the service life under high-speed revolution.
• Lubricated with grease, which is resistant to 200 degrees high temperature.
• Tight sealing and two-layer dustproof design.

Application

This series of air-cooled electric spindle motors is designed primarily for use with variable frequency drives or engraving machines, as well as CNC routers. It is ideal for high-speed profiling, drilling, cutting, engraving, and groove milling across a variety of materials, including wood, metal, plastics, foam, and rubber.

Note: Ensure that the spindle motor and VFD are compatible. The VFD’s specifications and parameter settings must align with the spindle motor’s nominal parameters. Incorrect settings can lead to spindle motor damage or burnout.

Specification

Details

Tips: Spindle Motor Bearing Maintenance

We should check the quality of the bearings from time to time during the use of the spindle motor. Under what circumstances do the bearings of the spindle motor have to be replaced?

1. The high noise of the spindle motor may be because the bearing is broken. The bearing is the core component of the high-speed rotation of the spindle motor. The bearing has abnormal noise, which is the lack of oil in the bearing raceway. If the sound is a little loud, you can still use it. But at this time the spindle motor is working, you should pay attention to increasing the circulating water volume to improve the cooling effect, try not to run for a long time, work for a period of time, should stop to cool down.

2. If the spindle motor vibrates, do not continue to use it. On the one hand, it affects the machining accuracy. On the other hand, the motor vibrates, which indicates that the balls of the bearing have been severely worn, and it is easy to wear the bearing seat. Moreover, if you continue to use the motor at this time, it will easily cause the bearing to heat up, and the temperature will easily cause the bearing to stop operating and even burn the coil. In the case of the vibration of the spindle motor, it must be used with caution.
