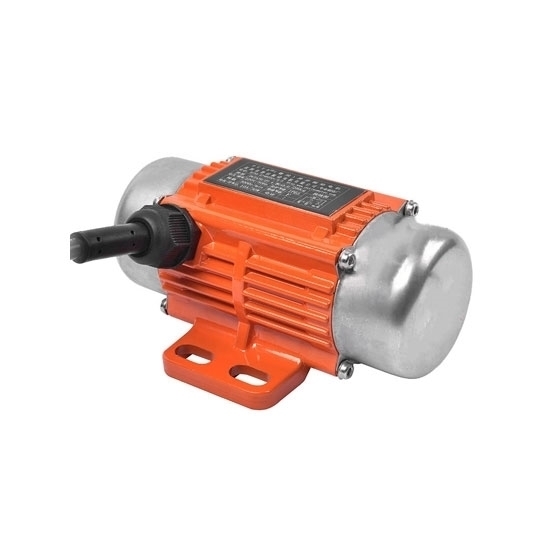

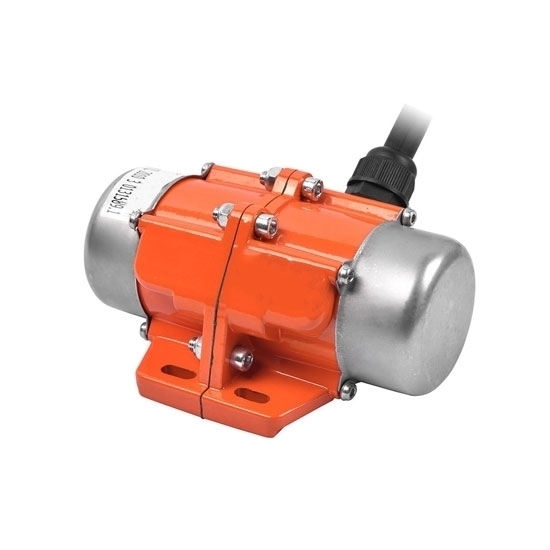

50W Single Phase AC Vibration Electric Motor, 220V/110V

0 reviews • Write a review

from

$129.89

Ex Tax: $129.89

Stock: In Stock
Model: RDDLZ-AVB-TB502S2
Weight: 1.00
SKU: RDDLZ-AVB-TB502S2

Available Options

AC Voltage

With Speed Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 1 phase 50W industrial vibrating electric motor features 220V/110V AC voltage, 50Hz 3000rpm & 60Hz 3600rpm frequency, 2 pole, CE certification and IP65 waterproof, specially designed for vibrating table/feeder/topsoil screeners. Matched vibration motor speed controller for selection.

Features

Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Model	RDDLZ-AVB-TB502S2
Power	50W
Voltage	AC 220V/AC 110V
Current	0.175A/0.465A
Frequency	50 Hz	60Hz
Rated Speed	3000rpm	3600rpm
Force	51 kg (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Phase	Single Phase
Pole	2 Pole
Material	Aluminum Alloy
Protection Rank	IP 65
Weight	2.5 kg

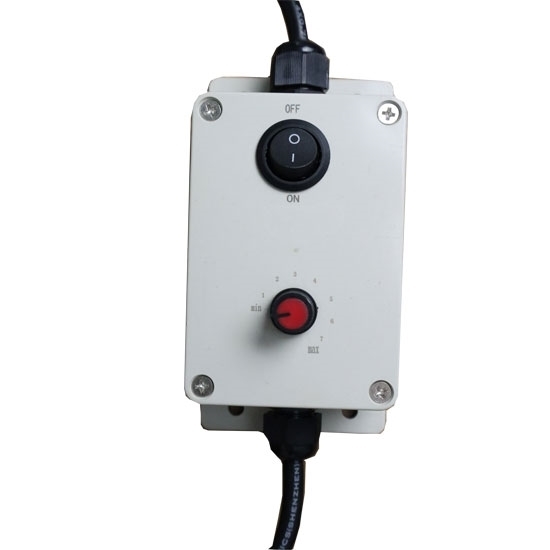

Optional Accessories	Speed Controller
Frame No	2
Certificate	CE

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
2	175.5	110	79.5	10	26.5	36.5	63	38.5	66	91.5	8.5	25.5	66	M-16

Internal Structure

Applications

RDDLZ 50W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: What is the rotational speed (RPM) of this 50W AC vibration electric motor?

As a 2 pole single-phase AC vibration electric motor, the theoretical speed is calculated as follows:

At 50Hz, the synchronous speed is 3000 rpm, but due to slip, the actual operating speed is around 2800-2900 rpm.
At 60Hz, the synchronous speed is 3600 rpm, with an actual speed of approximately 3400-3500 rpm.
