500mm Magnetostrictive Linear Displacement Sensor For Rapid Transit Railway

0 reviews • Write a review

from

$949.86

Ex Tax: $949.86

Stock: In Stock
Model: RDDLZ-MSD-SA0500
Weight: 1.00
SKU: RDDLZ-MSD-SA0500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

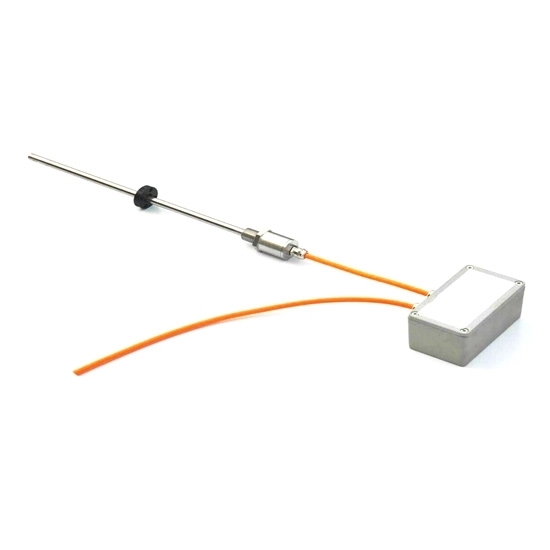

Magnetostrictive sensor has separated electronic bin and sensitive head. The two parts are connected by a cable to save installation space. It is suitable for built-in measurement applications where the installation requirement of the electronic bin is strict. It is applied to rapid transit railway and other fields requiring high performance.

Specification:

Basics	Model	RDDLZ-MSD-SA0500
	Measuring range	0~500 mm
	Shipping weight	3 kg
	Length	595mm
Technical parameters	Linearity	≤0.05%FS
	Repeatability	≤0. 002%FS
	Working Voltage	24VDC
	Working current	≤30mA
	Output method	0-5V / 0-10v / 4-20mA
	Temperature	Measuring rod: - 40℃～+110℃; Electronic bin: - 40℃～+80℃
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
	Type of lead wire	PG7 connection; Aviation plug
	Protection Class	Electronic bin: IP67; Measuring rod: IP69
	Installation method	Electronic bin: 4*M6X45; Measuring rod: M18X1.5
	effective travel in this series (customizable)	50-5000mm

Installation diagram (unit: mm):

Tips: Core component of magnetostrictive sensor
The core component of magnetostrictive displacement sensor, located in a measuring element (waveguide tube), indicates a piece of waveguide wire made of special magnetostrictive material . This material is well-known as "black gold" in the modern industry, featuring high strain value, electrical (magnetic) mechanical wave conversion ability. It can be used to change tiny magnetic field into mechanical wave.
