500mm Magnetostrictive Displacement Sensor For Lapping Machine

0 reviews • Write a review

from

$949.86

Ex Tax: $949.86

Stock: In Stock
Model: RDDLZ-MSD-0500
Weight: 1.00
SKU: RDDLZ-MSD-0500

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

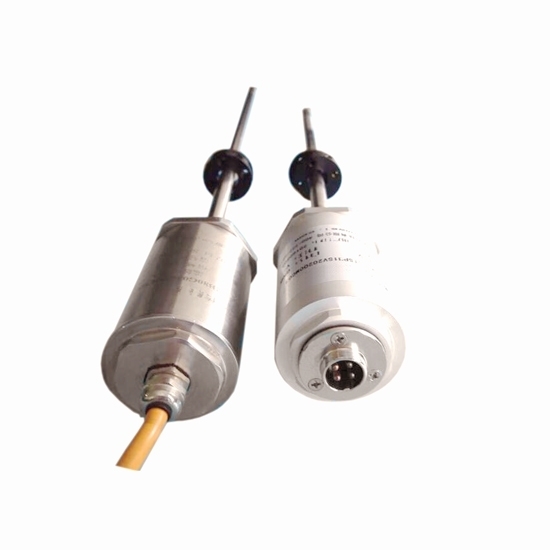

Magnetostrictive level sensor with measuring range 500mm is used for the machinery position preset and feedback, such as the lapping machinery position. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

Basics	Model0	RDDLZ-MSD-050
	Measuring range	0~500 mm
	Shipping weight	3 kg
	Length	699.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: SSI output magnetostrictive displacement sensor vs absolute encoder

As for the standard RS485/RS422 digital output signal, through SSI synchronous serial output mode, the data format is the same as that of absolute output encoder. Output gray code or binary code can be used to replace absolute encoder for the sake of measuring the displacement. The interface of the both is compatible, so magnetostrictive displacement sensor can completely substitute absolute encoder.
Magnetostrictive displacement sensor features good reliability. Featuring high anti-interference, SSI signal can be transmitted remotely. The data are exchanged synchronously and also can be used in various closed-loop control systems so as to be connected with various controllers or PLCs. Meanwhile, it features simple installation and long service life. Thus, it reduces heavy repair workload than absolute encoder.
The output position is an absolute value, digital panel meter can read anytime without influence of power interruption and restoration, and it is not necessary to be reset. As for absolute encoder, it is necessary to be calibrated regularly and rest after power failure, etc. However, the magnetostrictive displacement sensor of SSI output makes up for the flaws of absolute encoders.
