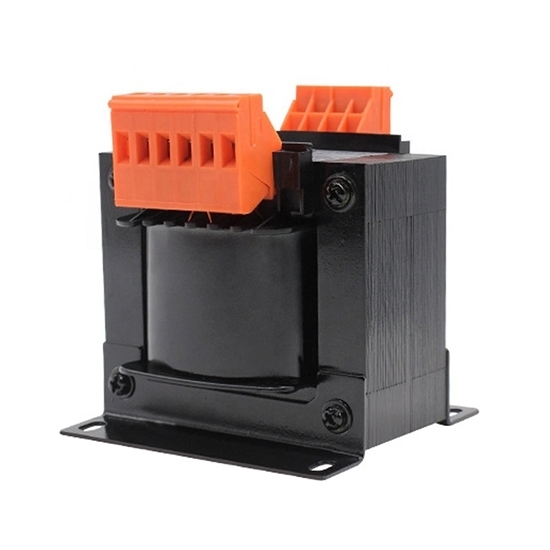

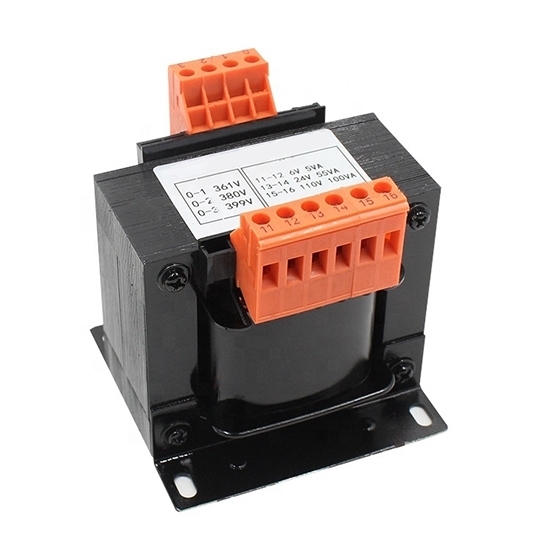

500VA Control Transformer, 240V To 110/36/24V

0 reviews • Write a review

from

$373.08

Ex Tax: $373.08

Stock: In Stock
Model: RDDLZ-T-BK500VA
Weight: 1.00
SKU: RDDLZ-T-BK500VA

Available Options

Winding Material

Primary Voltage (AC)

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Step down control transformer converts single phase 240V AC to 110/36/24V AC, input/ output voltage can be customized as your requirement. In general, for the 500VA control electric transformer, input rated voltage less than 500V, output rated voltage less than 240V, worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.

Specifications

Product Name	Single phase control transformer
Product Model	RDDLZBK-500VA
Winding Material*	Enameled copper wire or enameled aluminum wire (Optional)
Total Output Capacity	500VA Note: (If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 500VA).
Primary Voltage* (VAC)	110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customized)
Secondary Voltage* (VAC)	6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customized)
Frequency	50 / 60Hz
Insulation Level	F / H
Withstand Voltage Test	Primary to secondary 2.5KV/min
	Primary to safety ground 2.5KV/min
	Secondary to safety ground 1.5KV/min
Insulation Resistance	Primary to secondary 2500V>100 megohm
	Primary to safety ground 2500V>100 megohm
	Secondary to safety ground 1500V>100 megohm
Induction Withstand Voltage Test	125Hz/ 800V/min
Ground Resistance	25A<80 milliohm
Cooling Method	Natural or air cooling
Transformation Ratio	<3%
Air Carrying Current	<6%
Impedance Voltage	about 6%
Total Losses	0.1
Efficiency	80%~99%
Operating Temperature	-25℃~40℃ (40℃, 93% RH, 56 days)
Storage Temperature	-25℃~100℃ (40℃, 93% RH, 56 days)
Certificate	CE, ISO
Warranty	12 months
Size	Overall size: 132135140mm, Hold distance for installation: 100105mm, Installation hold: 127mm
Weight	10kg

Schematic diagram illustration

Control transformer dimension

Overall size (mm)			Hole distance for installation (mm)		Installation hole (mm)
B	E	D	A	C	K x J
132	135	140	100	105	12 x 7

Tips: RDDLZ 500VA-10kVA control transformers working environment

Ambient air temperature: -5℃~+40℃, the highest monthly mean temperature should not exceed +30℃.
Altitude for installing place should not exceed 1000m.
When the ambient air temperature is +40℃, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is +25℃, and condensation on the product surface caused by temperature change should be taken into consideration.
