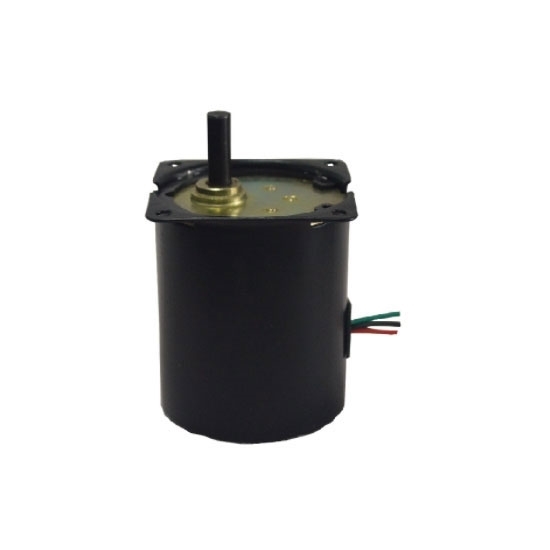

5 Rpm AC Synchronous Gear Motor, 24V/110V/220V

5 Rpm AC Synchronous Gear Motor, 24V/110V/220V
5 Rpm AC Synchronous Gear Motor, 24V/110V/220V
0 reviews • Write a review
from
$51.12
Ex Tax: $51.12
  • Stock: In Stock
  • Model: RDDLZ-60TYD-B5
  • Weight: 1.00
  • SKU: RDDLZ-60TYD-B5

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC PMSM electric motor is mostly used for air cooler, laminator, outdoor auto control machine and monitor, etc. It is reversible and starts by capacitor.

Specification

ModelRDDLZ-60TYD-B5
Duty TypeS1 ContinuesS2 (30 mins)
Voltage (AC)24V110V220V-240V24V110V220V-240V
Power Frequency50/ 60 Hz50/ 60 Hz
Output Speed5 rpm
Output Torque40 Kgf·cm40 Kgf·cm
Rated Speed1200 rpm1200 rpm
Input Power< 17W< 25W
Input Current< 0.65A< 0.15A< 0.08A< 1.5A< 0.35A< 0.2A
RotationCW/CCW (Reversible)CW/CCW (Reversible)
Operating Temperature-15 ~ 40℃-15 ~ 40℃
Coil Temperature Rise< 80K< 80K
Insulation ClassBB
Insulation StrengthAC 1500/ 50Hz/minAC 1500/ 50Hz/min
Recommended Capacitance47μF/ 63V2.2μF/ 250V0.56μF/ 450V67μF/ 63V3.0μF/ 250V0.8μF/ 450V

Dimension (Unit: mm)

Detail

Tips: How does a permanent magnet AC synchronous motor generate power?

The current in the rotor winding is not by the stator rotating magnetic field induction, but oneself. The rotor has nothing to do with the stator rotating magnetic field and the direction of magnetic pole is fixed. According to the principle of like charges repel and opposite charges attract, the stator rotating magnetic field will drive the rotor rotation, and make the rotor magnetic field and rotor and stator rotating magnetic field rotate synchronously. That’s working principle of PMSM motor.
