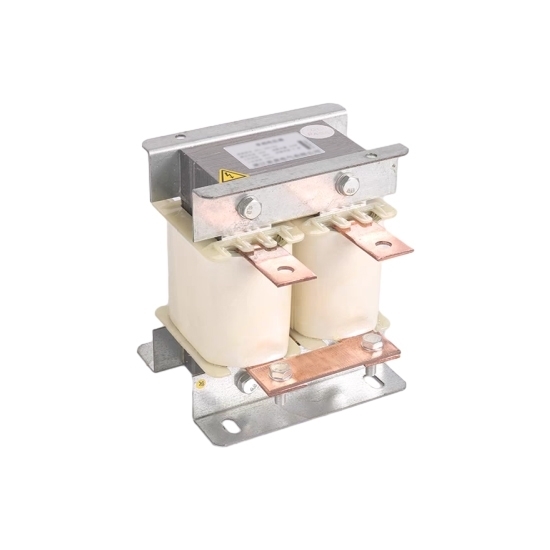

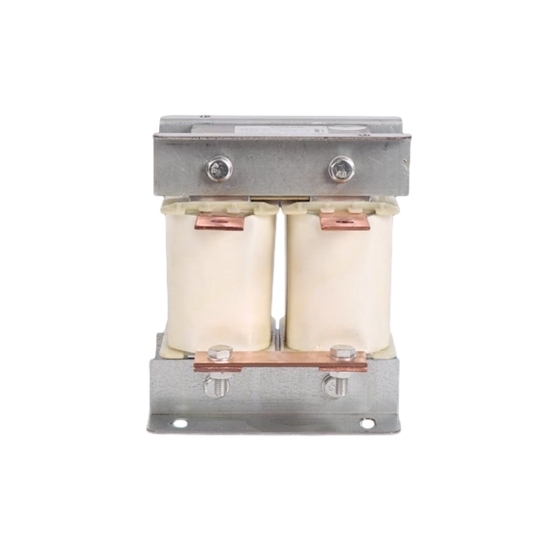

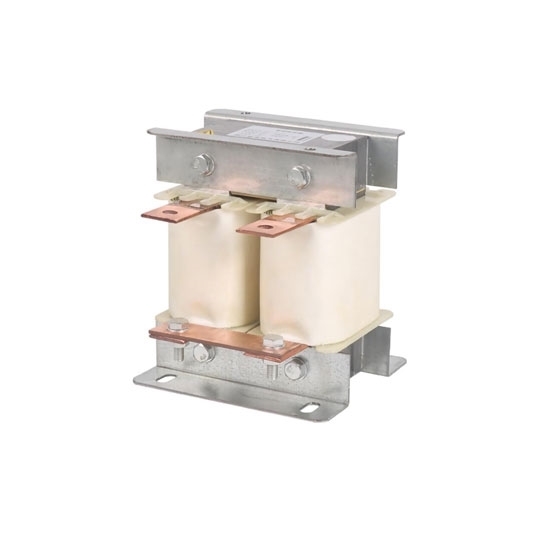

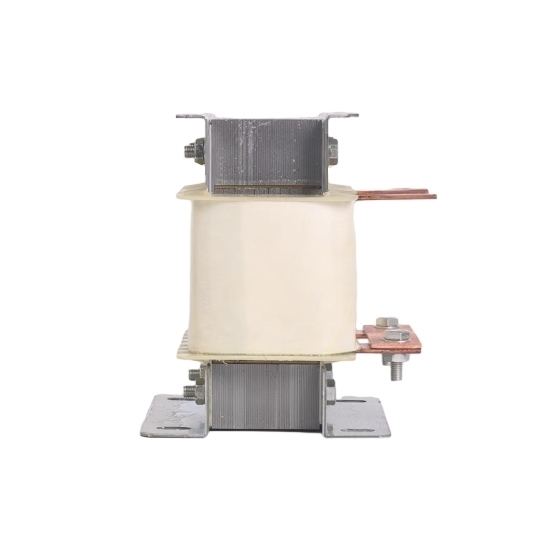

5 Hp (4 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$117.84

Ex Tax: $117.84

Stock: In Stock
Model: RDDLZ-DCR-5
Weight: 1.00
SKU: RDDLZ-DCR-5

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price 4kW DC reactor for sale, copper or aluminum of material design, single phase DC output voltage 220V, 380V, 400V to 1200V is optional. Electrical DC line reactor can improve the input current wave caused by capacitor harmonics.

Specification:

Model	RDDLZ-DCL-4
Phase	1 Phase
Power Adapter	4 kW (5 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	15A
Inductance	2.125mH
Insulation Grade	F.H
Dimension	96125110mm (LWH)
Mounting Dimension	80*70mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	3kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: Why do I need a DC reactor?

Whether a DC reactor is required on the output side of the inverter input and output protection circuit should be determined according to the working environment of the inverter. When the following situations occur, consider using a DC reactor.
1. With switched reactive compensation capacitors or with thyristor phase-controlled load
For the case where there is a switch-type reactive power compensation capacitor screen or a thyristor phase-controlled load on the same power node providing the inverter's working power, a DC reactor should be used. This is mainly due to the instantaneous change in reactive power caused by the switching of the capacitor screen, which will cause a sudden change in the grid voltage; and the harmonics and grid waveform gaps caused by the phase-controlled load may cause harm to the input rectifier circuit of the inverter.
2. Unbalanced three-phase power supply
When the imbalance of the three-phase power supply to the inverter exceeds 3%, a DC reactor should be selected.
3. With power factor requirement
If there is a certain requirement for the power factor of the input terminal of the inverter, if it needs to be increased above 0.93, a DC reactor should be selected.
4. Large capacity transformer
If the inverter is connected to a large-capacity transformer, and the current flowing in the input power circuit of the inverter may cause damage to the inverter's rectifier circuit, a DC reactor should be used.
