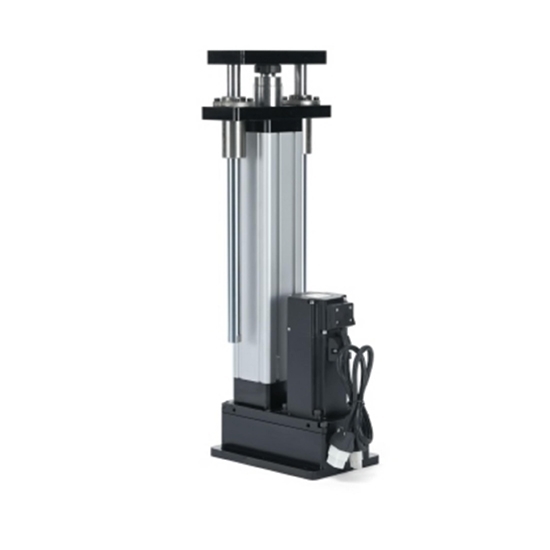

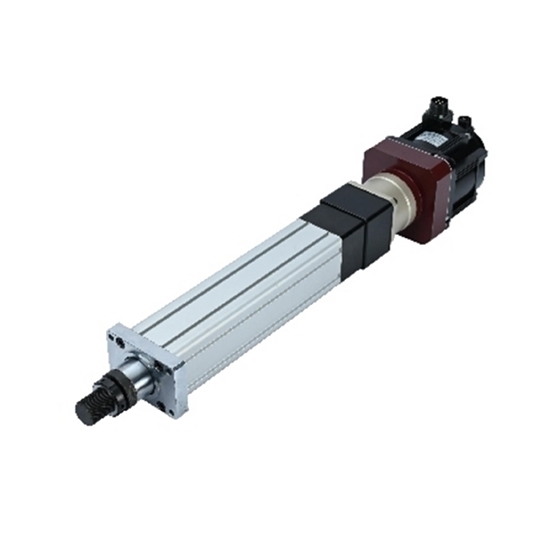

5.5kW Linear Servo Motor, 35Nm, 56kN, 1800mm

Free Shipping

5.5kW Linear Servo Motor, 35Nm, 56kN, 1800mm

0 reviews • Write a review

from

$9,506.11

Ex Tax: $9,506.11

Stock: In Stock
Model: RDDLZ-SERVO-L5500
Weight: 1.00
SKU: RDDLZ-SERVO-L5500

Available Options

Short Description

Installation Method

Structure Type

Rod End Connection

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price linear servo motor with rated power 5.5kW, rated linear speed 25mm/ s, which can up to 250mm/ s, diameter 40mm.

Specification

Model	RDDLZ-EDA110-5500W
Rated power	5.5KW
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	2:1
Rated speed	1500 rpm
Max. speed	3000 rpm
Rated torque	35 Nm
Rated thrust	37.42 kN
Rated linear speed	25mm/s
Max. thrust	56 kN
Max. linear speed	250mm/s
Max. stroke	1800mm
Diameter	40mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	320kg
Certificate	CE
Warranty	12 months

Dimension (unit=mm)

In-line

Reentrant

Details

Tips: Deceleration Mechanism of Linear Servo Motor.

The deceleration mechanism of the actuator cylinde can choose the synchronous belt, the planetary gear reducer and the harmonic gear reducer, etc.
The synchronous belt drive is composed of an endless belt with equidistant teeth on the inner peripheral surface and wheels with corresponding anastomosis. It combines the advantages of belt drive, chain drive and gear drive. Synchronous belt transmission is mostly used on fold-back electric cylinders. Synchronous belt transmission has the advantages of accurate transmission, constant transmission ratio and stable transmission. Part of the electric cylinder adopts a planetary gear reduction mechanism in the selection of the reduction gear. Planetary gear transmission is a gear transmission that makes the axis of one or more planetary wheels rotate around the fixed axis of the center wheel. Planetary gear transmission has the advantages of small size, light weight and high carrying capacity. Harmonic gear reducer is also one of the commonly used reduction devices for electric cylinders. The so-called harmonic drive is a general term for a device that realizes movement and power transmission by elastic deformation of the middle flexible member. Harmonic gear drive has the advantages of simple structure, small size, large carrying capacity, large transmission ratio range, high motion accuracy, small and uniform tooth surface wear, etc.
